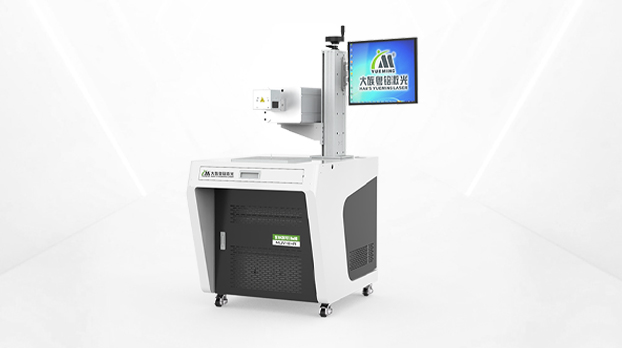

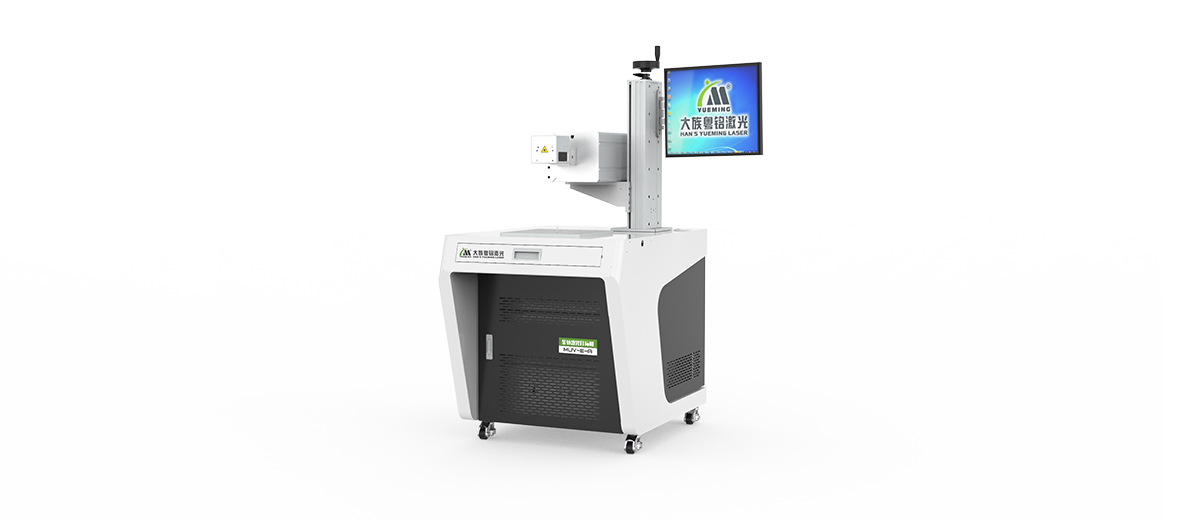

UV Laser Marking Machine Series

MUV-E-A

Laser power(w):3/5W

Equip with imported UV laser generator to guarantee high-quality laser beam, smaller laser spot, hyperfine marking, and high definition; Extremely small heat-affected zone, almost no thermal effect on the material, which prevents materials from deformation, damage or burning; Suitable for large range of material than infrared laser; Imported high speed digital scanning galvanometer enjoys compact volume, high speed and superior stability;

Features

Integrated multi-functions into one, create more value for customer

Equip with imported UV laser generator to guarantee high-quality laser beam, smaller laser spot, hyperfine marking, and high definition;
Extremely small heat-affected zone, almost no thermal effect on the material, which prevents materials from deformation, damage or burning;
Imported high speed digital scanning galvanometer enjoys compact volume, high speed and superior stability;
The totally enclosed protection design can effectively prevent ultraviolet radiation which endangers human health.

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	MUV-E-A
Working area	100×100mm/200×200mm
Overall dimension	650×1000 ×1500mm
Laser power	3/5W
Speed	0~7000mm/s
Minimum line width	≤0.02mm
Gross power	1.5kW
Weight	200kg
Supply voltage	220V 50Hz, 10A
Working environment	Temp:15~35°C Humidity:5%-85% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

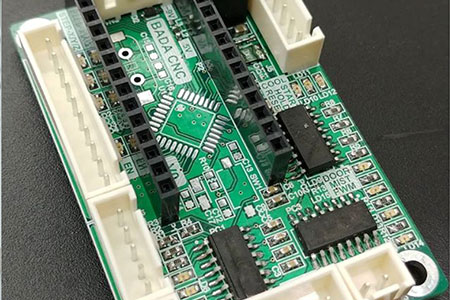

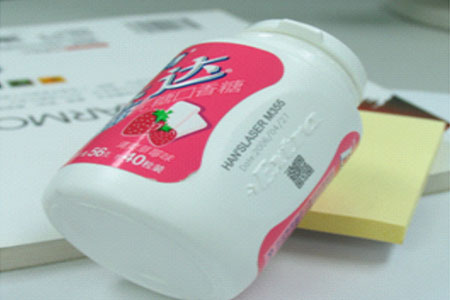

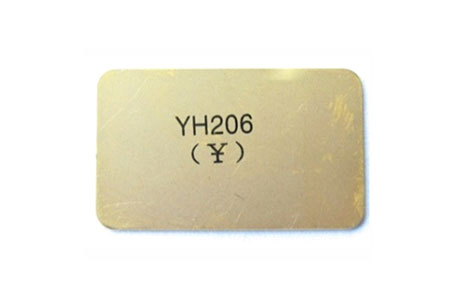

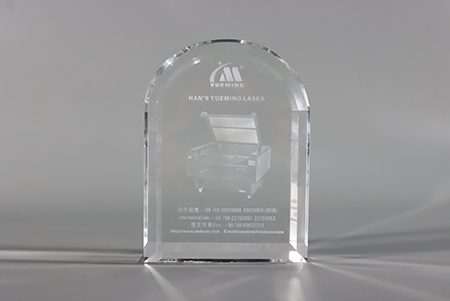

Suitable for fine marking of PVC,plastics,leather,metal,glass,LCD screen,thin ceramic,monocrystallinesilicon wafer,IC grain, sapphire,etc.It is popular for precise marking of electronics industry.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
