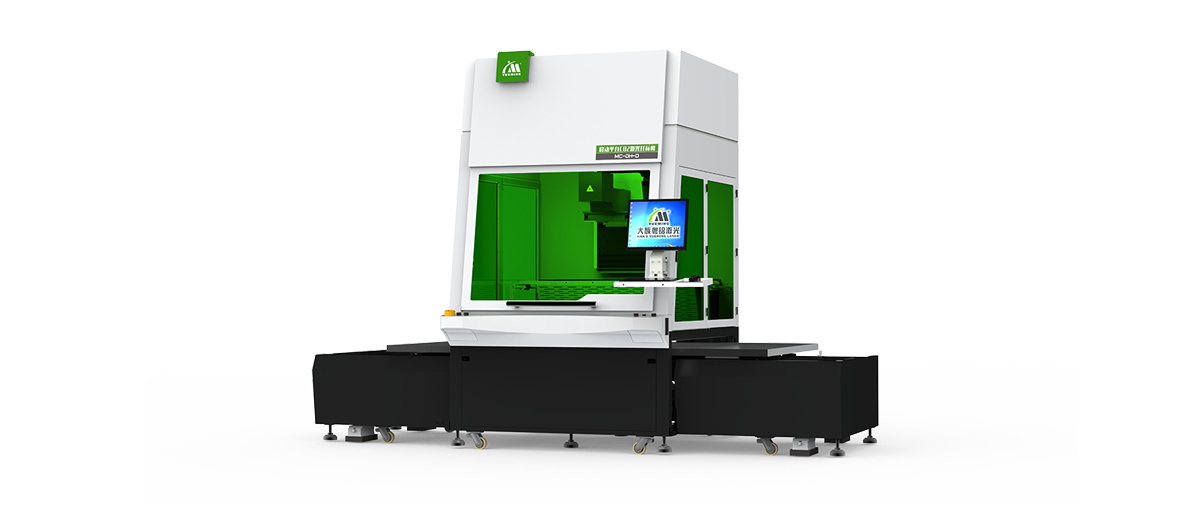

Large-Format CO2Three-Axis Laser Marking Machine Series

MC-D-D

Laser power(w):180/ 250 / 350W

Original Germany imported CO2 RF laser generator: good spot quality, uniform laser power density, stable output laser power; Triaxial dynamic marking system can carry out the dynamic focusing scanning of large-scale adjustment, and the dynamic shaft displacement of different scanning ranges can be calibrated automatically. Easy and flexible to operate; The optical fixture can be adjusted for different kinds of marking area. With measuring scale and LED digital display, the focal length adjustment is more accurate;

Features

Integrated multi-functions into one, create more value for customer

Original Germany imported CO2 RF laser generator: good spot quality, uniform laser power density, stable output laser power;
Triaxial dynamic marking system can carry out the dynamic focusing scanning of large-scale adjustment, and the dynamic shaft displacement of different scanning ranges can be calibrated automatically. Easy and flexible to operate;
The optical fixture can be adjusted for different kinds of marking area. With measuring scale and LED digital display, the focal length adjustment is more accurate;
The optical cavity is designed with a dual dustproof design, which protects the core optical devices such as laser generator and galvanometric scanner from pollution, and keeps the equipment more stable and longer life;

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	MC-D-D/MC-DH-D
Working area	1200×1200mm/1200×2400mm
Overall dimension	1700×2670×2430mm/ 4000×2670×2430mm
Laser power	180/ 250 / 350W
Lifting height	800~1300mm
Minimum line width	0.5/0.7mm
Gross power	6/14.5kW
Weight	700kg/1150kg
Supply voltage	AC220V±10%, AC380V±10%( Chiller), 50Hz/60Hz
Working environment	Temp:10~35°C Humidity:5%-85% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

All kinds of textile fabrics,leather,PU,PVC materials.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
