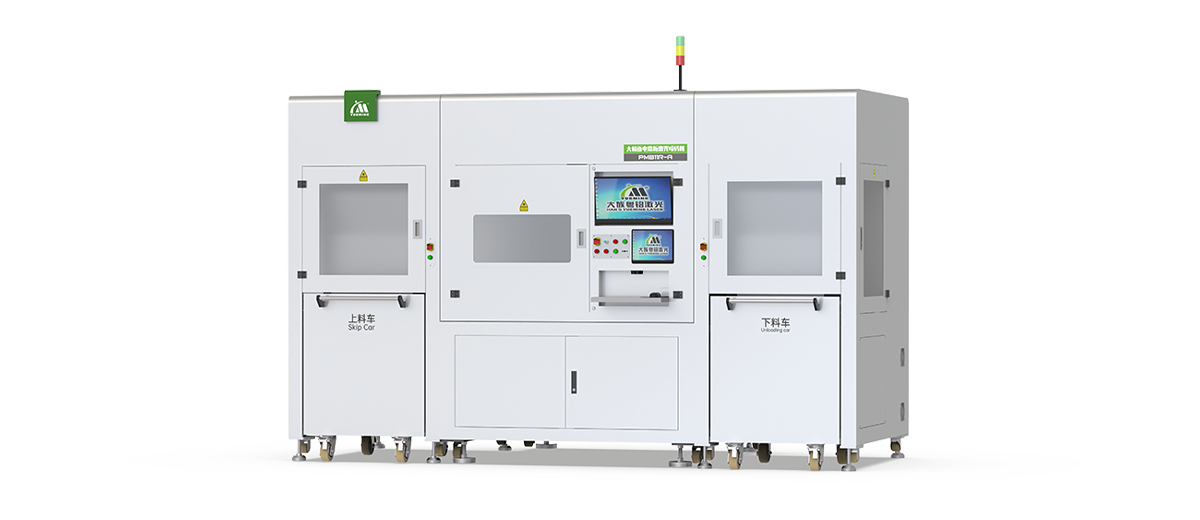

Large Format Circuit Board Laser Code Jet Printer Series

PMB11R-A

Laser power(w):CO₂: 10W UV: 3W/5W Fiber: 30W Green: 10W

Specialized large format laser marking machine, max marking area can reach to 750×750mm; High-performance CCD visual positioning system, supports real-time code scanning for grade filtering, and is able to connect to MES systems; Support code auto-scanning, auto-flipping, double-side engraving, width electric adjusting, and auto-focusing etc

Features

Integrated multi-functions into one, create more value for customer

Specialized large format laser marking machine, max marking area can reach to 750×750mm;
High-performance CCD visual positioning system, supports real-time code scanning for grade filtering, and is able to connect to MES systems;
The same structure of the loading and unloading manipulator, with higher reliability and sensitivity, and more convenient to maintain;
Mainly for automotive electronic circuit board marking, supporting flipping marking on large and heavy PCB substrate;

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	PMB11R-A
Working area	300×300~750×750mm
Overall dimension	3700×2000 ×2300mm
Laser power	CO₂: 10W; UV: 3W/5W; Fiber: 30W; Green: 10W.
Field lens size	100×100mm
Positioning accuracy	±0.02mm
Gross power	10kW
Weight	2000kg
Working environment	Temp:10~30°C Humidity:≤70% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

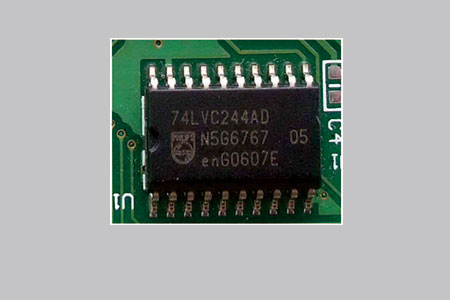

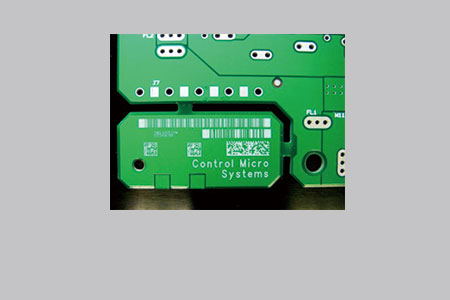

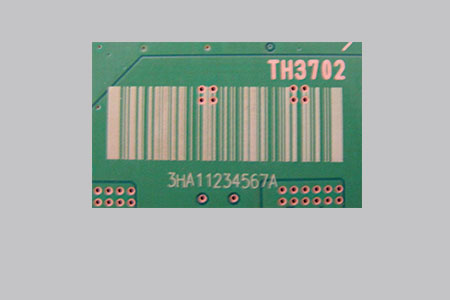

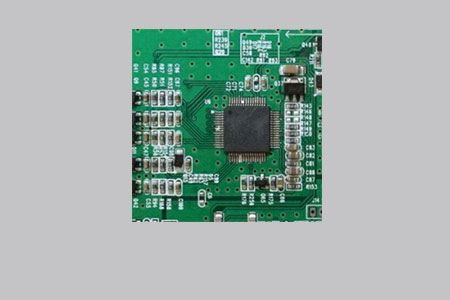

Mainly for laser marking characters,QR codes,LOGO,etc.on various types of PCB,PCBA,and Rigid-flex PCB.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
