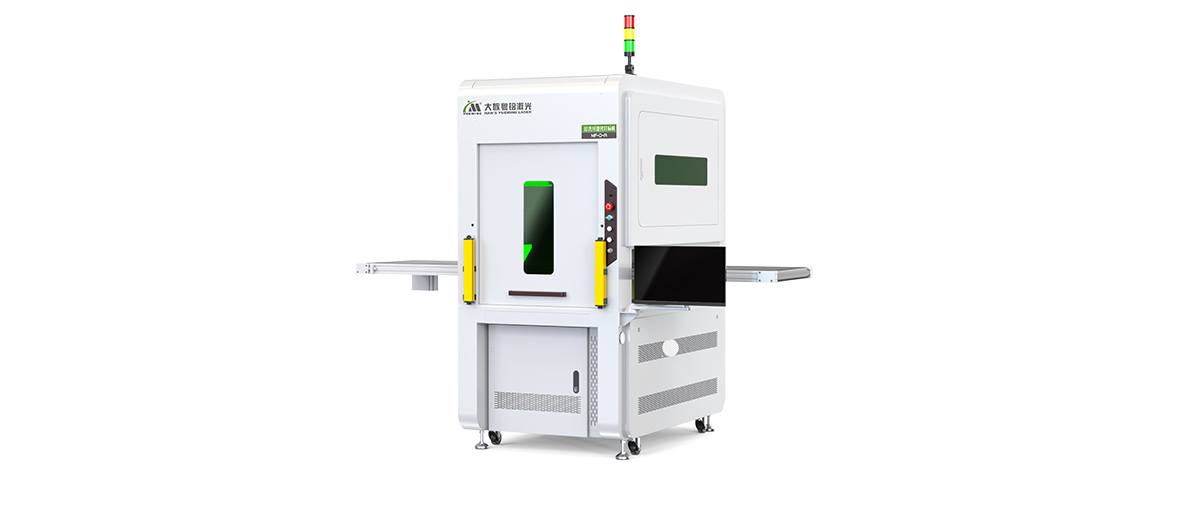

3D Laser Marking Machine Series

MF-D-A

Laser power(w):20-200W/5-20w

It can mark on 3D curved surface, generate precise laser spot and have uniform marking quality within the scope of 0~150mm height; Equipped with the large-format marking function and the maximum marking area can reach 600*600mm, which is much bigger than traditional l fiber laser marker;Adopted with advanced triaxial digital galvanometer scanner, it can realize fast marking, real-time control of variable focal length and uniform laser spot;

Features

Integrated multi-functions into one, create more value for customer

It can mark on 3D curved surface, generate precise laser spot and have uniform marking quality within the scope of 0~150mm height;
Equipped with the large-format marking function and the maximum marking area can reach 600*600mm, which is much bigger than traditional l fiber laser marker;
Adopted with advanced triaxial digital galvanometer scanner, it can realize fast marking, real-time control of variable focal length and uniform laser spot;
Modular design, compatible for the majority of domestic and foreign fiber laser generators and well-adapted;

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	MF-D-A/MUV-D-A
Working area	300×300 / 400×400 / 500×500 / 600×600mm
Overall dimension	1000×1300×1700mm/1000×1300×2100mm
Laser power	10W/20W/30W/50W
Speed	＜8000mm/s
Gross power	＜3kW
Weight	400kg
Working environment	Temp:5~35°C Humidity:5%-85% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

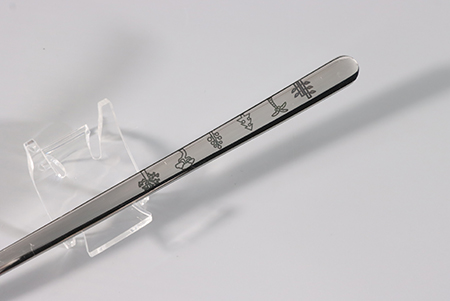

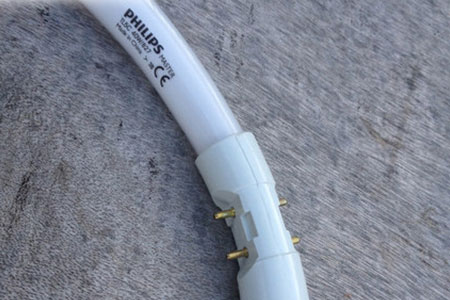

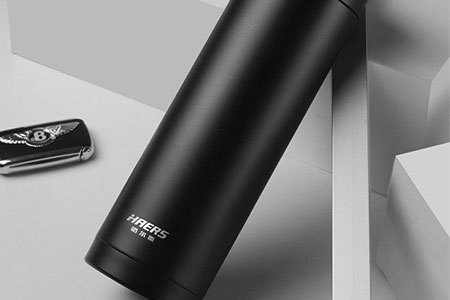

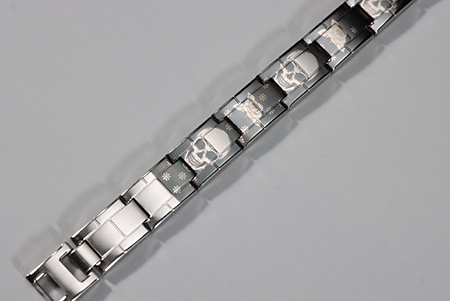

Plastic,steel,rubber,pvc,stainlessstel,aluminum-magnesium alloy,zinc alloy,copper,nickel plating,zinc plating,alumina,gold,silver etc.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
