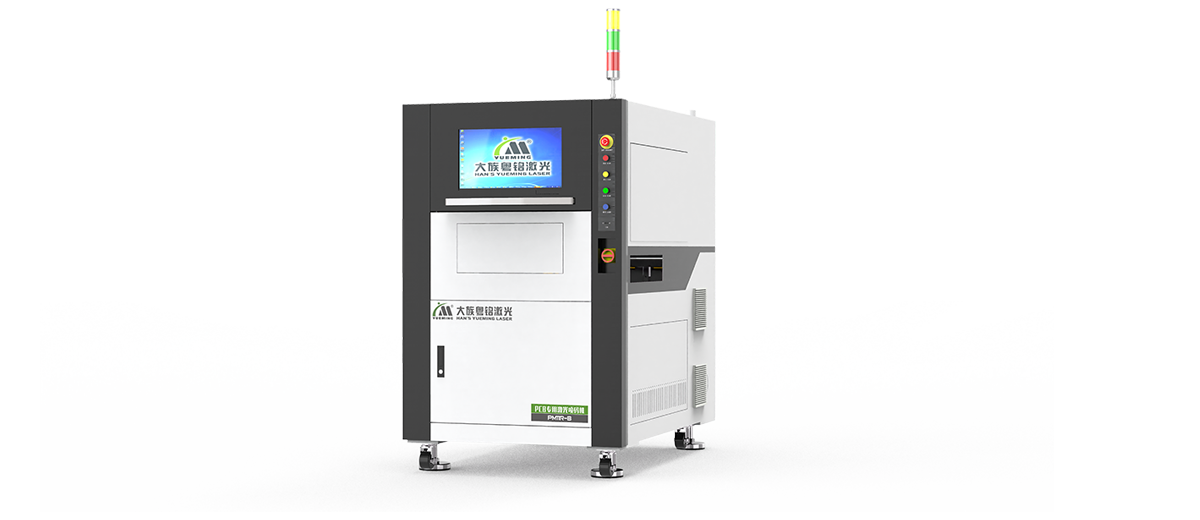

PCB Special Laser Code Jet Printer Series

PM11-B

Overall dimension(mm):1000×1600 ×1600mm

Digital high-speed scanning galvanometer, small size, fast speed, can resist strong electromagnetic interference and ground vibration, high stability; The built-in plate flapping mechanism can realize double-sided marking, and the high-precision ball spline is selected to ensure that the plate flapping mechanism has no stress on the substrate; The transmission structure adopts a high-precision linear guide rail and a ball screw to form a motion structure, which is stable in operation, high in accuracy and long in service life;

Features

Integrated multi-functions into one, create more value for customer

Digital high-speed scanning galvanometer, small size, fast speed, can resist strong electromagnetic interference and ground vibration, high stability;
The built-in plate flapping mechanism can realize double-sided marking, and the high-precision ball spline is selected to ensure that the plate flapping mechanism has no stress on the substrate;
The transmission structure adopts a high-precision linear guide rail and a ball screw to form a motion structure, which is stable in operation, high in accuracy and long in service life;
The intelligent design of the equipment industry 4.0 can connect online and offline MES systems according to the needs, and can also be embedded in the SMT assembly line;

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	PM11-B/PM11R-B/PM12-B
Working area	65x50~480x510mm /65×50mm~400×450mm / 65×50mm~ 300×300mm
Overall dimension	1000×1600 ×1600mm
PCB thickness	0.5~5mm
Code size	2~20mm
PCB through height	UP: 25mm DOWN: 25mm
Gross power	4kW / 4kW / 7.5kW
Weight	1000kg / 1000kg / 1200kg
Supply voltage	AC220V, 50/60Hz
Working environment	Temp:15~30°C Humidity:5%-85% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

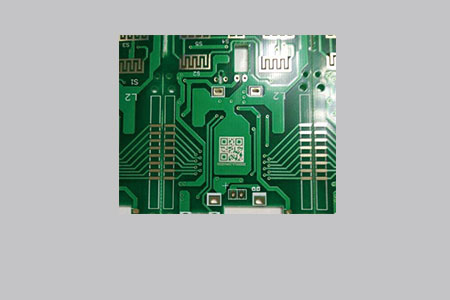

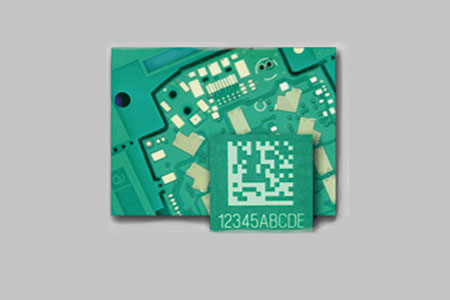

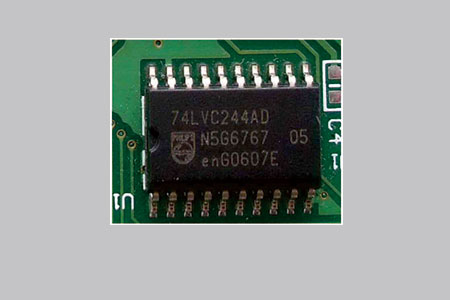

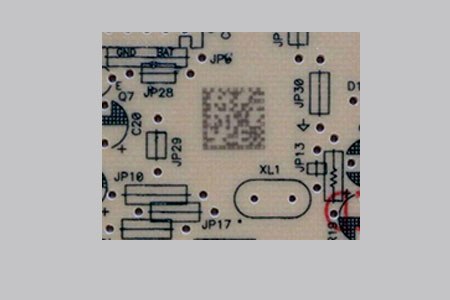

PCB/PCBA/FPC/chip,etc.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
