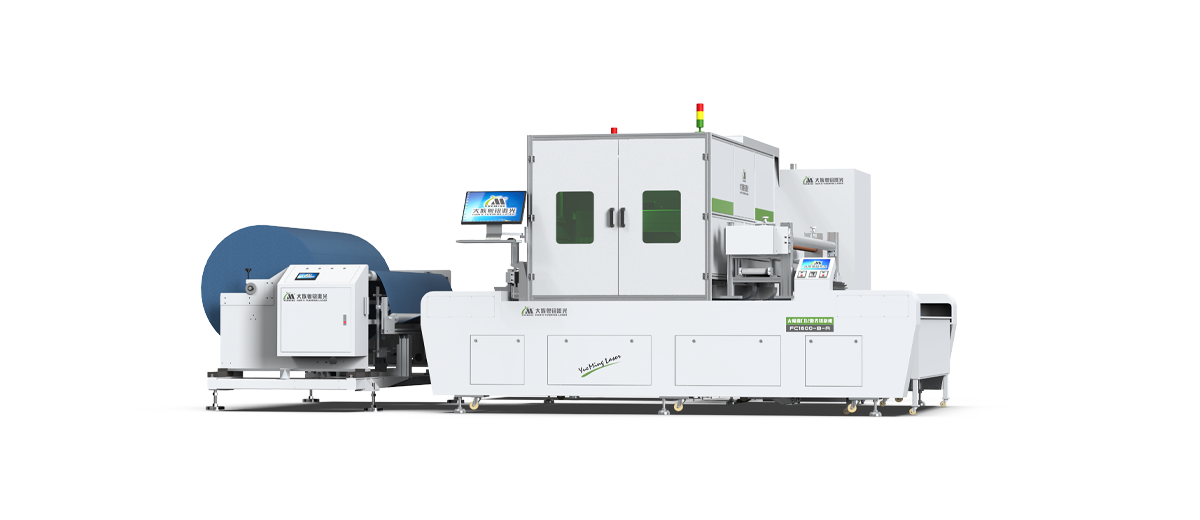

Roll-to-roll Automatic Laser Marking Machine

FC600-B-A

Laser power(w):180W

Imported CO₂ RF laser ensure longterm stable performance. 3-axis dynamic galvo head with vision positioning supports high-precision processing up to 600 × 600 mm. Professional tension controller and servo motor motion control system, ensuring material loading and unloading synchronization, operation accuracy less than 0.1mm

Features

Integrated multi-functions into one, create more value for customer

3-axis dynamic galvo head with vision positioning supports high-precision processing up to 600 × 600 mm.
Professional tension controller and servo motor motion control system, ensuring material loading and unloading synchronization, operation accuracy less than 0.1mm.
Self-developed SmartStudio professional control system, featuring strong compatibility, high automation, and intuitive operation.
Full automatic processes of unwinding, film tearing, film covering, waste discharge, and material collecting.

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	FC600-B-A
Working area	600×600mm
Overall dimension	4364×2048×2271mm
Laser power	180W
Speed	＜7000mm/s
Laser wavelength	10.6um
Weight	4000Kg
Supply voltage	220V 50/60Hz
Working environment	Temp:5~35°C Humidity:5%-85% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

Apply for roll-to-roll kiss-cutting of flexible films such as reflective bonding film, PET films, and adhesive films

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
