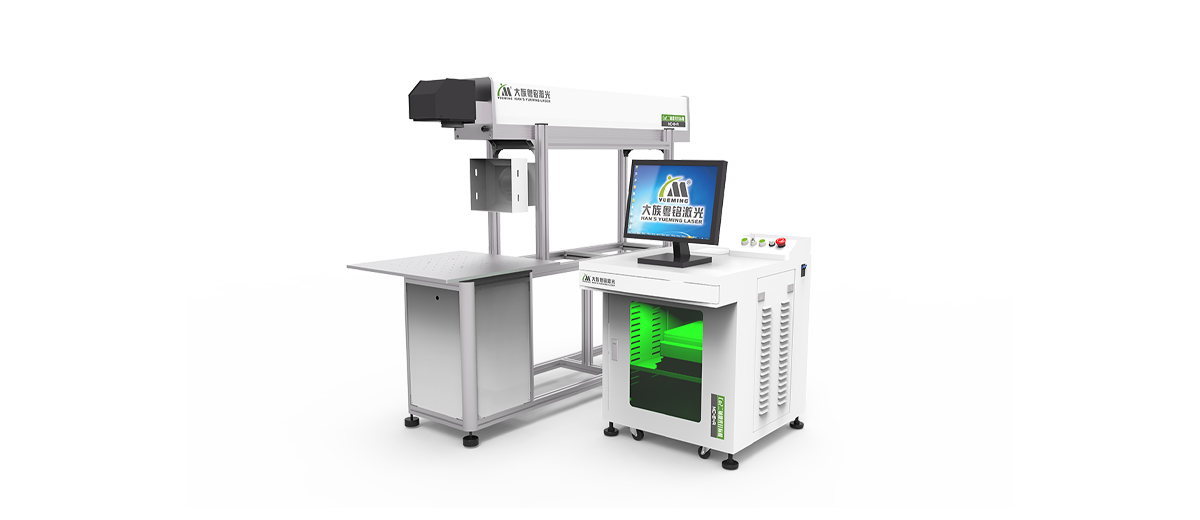

CO2-Axis Laser Marking Machine Series

MC-E-A

Laser power(w):30W/60W/100W

Adopts laser generator with good quality laser beam, uniform laser power density and stable laser power output which can meet the demand of most industry application in market; Digital high speed scanning galvanometer, fast speed, stable quality and performance can reach international advanced level; Core Controller with completed function and software .The powerful control system can optimize data according to different application, support multiple languages convert and 256 layers management

Features

Integrated multi-functions into one, create more value for customer

Adopts laser generator with good quality laser beam, uniform laser power density and stable laser power output which can meet the demand of most industry application in market;
Core Controller with completed function and software .The powerful control system can optimize data according to different application, support multiple languages convert and 256 layers management;
All-in-one frame, independent operation console, compact design, easy to be placed anywhere and save space;
The inner of the light path system adopts a sleeve type seal structure to prevent dust entering, which improves the life and the efficiency of the core device.

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	MC-E-A/MC-E-B
Working area	110×110mm /175×175mm /300×300mm
Overall dimension	1300×1100×1400mm /1300×1100×1400mm /1300×1800×1400mm /610×900×1500mm
Laser power	15W/30W/60W/100W
Speed	0~5000mm/s 0~7000mm/s Imported galvanometer
Minimum line width	0.1mm
Gross power	＜1.75kW/＜2.05kW/5.9kW/＜1.2kW
Weight	141kg/ 146kg/ 170kg/ 50kg
Supply voltage	AC220±10% 50Hz/60Hz
Working environment	Temp:10~35°C Humidity:5%-85% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

Wood,plastic and paper

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
