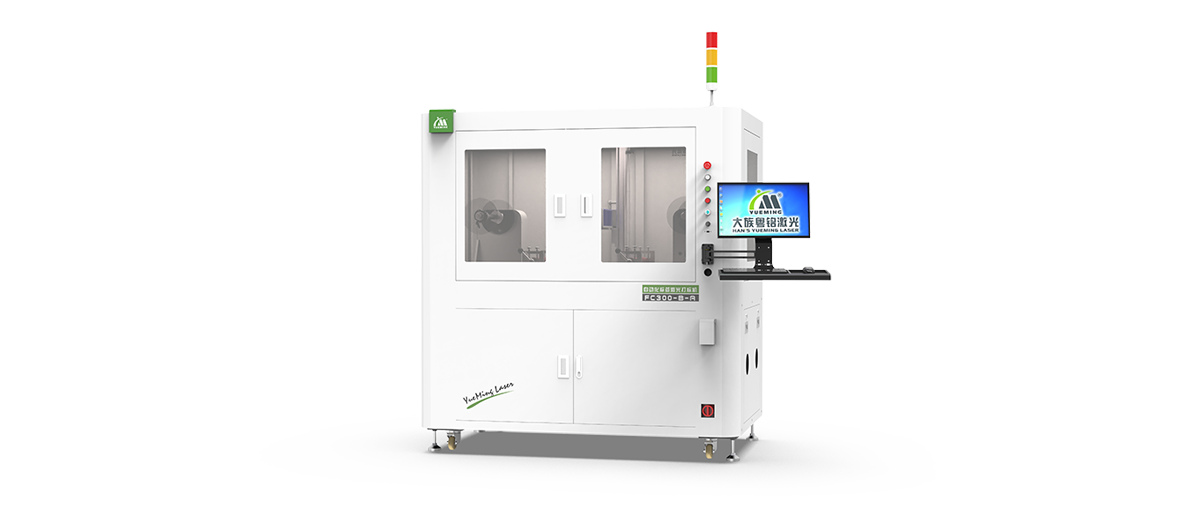

Label Laser Marking Machine Series

FC300-B-A

Laser power(w):20-50W

Roll to roll automatic loading and unloading, full or short of material automatic alarm, marking speed adjustable, long time running process without accumulated errors, automatic processing products. Vision positioning process and sensor positioning process are optional without affecting the efficiency, marking accuracy can be improved to ±0.1mm. The imported core components are optional, excellent performance, stable quality, long service life. It adopts integrated design. Integrating machine hardware, control system and working platform, small footprint, and the whole machine is easy to operate

Features

Integrated multi-functions into one, create more value for customer

Roll to roll automatic loading and unloading, full or short of material automatic alarm, marking speed adjustable, long time running process without accumulated errors, automatic processing products.
Vision positioning process and sensor positioning process are optional without affecting the efficiency, marking accuracy can be improved to ±0.1mm
It adopts integrated design. Integrating machine hardware, control system and working platform, small footprint, and the whole machine is easy to operate
Strong compatibility: Support DXF, PLT vector and image format; Support dot matrix fonts and TTF fonts as well as self-developed fonts; Support twodimensional code, pictures, characters and other content marking; Support a variety of galvo head correction; Greatly meet different levels of customer needs.

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	FC300-B-A
Width of the coil	10~300mm
Overall dimension	1450×770×1450mm
Laser power	20-50W（Fiber） 3-5W（UV） 30W（CO2）
Speed	0~7000mm/s
Gross power	2kW
Weight	300kg
Supply voltage	220V/10A±5%
Working environment	Temp:10~30°C Humidity:5%-85% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

Plastics,Stainless steel,and other metal materials surface marking.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
