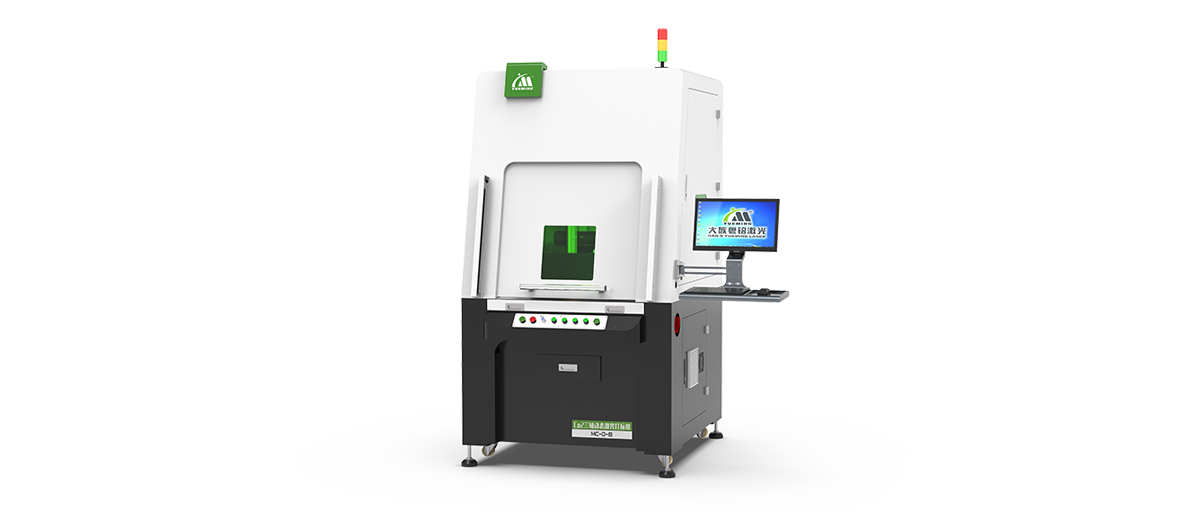

CO2 Three-Axis Dynamic Laser Marking Machine Series

MC-D-A

Laser power(w):100/120/180/200/250/300/350W

Original imported CO₂ RF laser generator, high quality laser spot with uniform power density and stable output power; Triaxial dynamic high speed scanning system, imported core component, equipped with digital display focusing function, small gathering spot, large working area, high speed, flexible and good stability; The light path cavity adopts sealed dual dustproof design, ensure the laser source, galvanometer and other core optical parts work in a clean environment, make the machine work more stable with longer life;

Features

Integrated multi-functions into one, create more value for customer

Original imported CO₂ RF laser generator, high quality laser spot with uniform power density and stable output power;
Triaxial dynamic high speed scanning system, imported core component, equipped with digital display focusing function, small gathering spot, large working area, high speed, flexible and good stability
The light path cavity adopts sealed dual dustproof design, ensure the laser source, galvanometer and other core optical parts work in a clean environment, make the machine work more stable with longer life;
The optical bench can be adjusted manually to meet different processing size requirement, largest working area can reach 600*600mm;Aluminum frame, compact structure, smaller area occupation and higher space utilization

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	MC-D-A/MC-D-B/MC-D-C
Working area	400×400mm/800×800mm/30×300mm/00×800mm
Overall dimension	1000×1350×1830mm/200×1420×2200mm/300×2200×2200mm
Laser power	100/120/180/200/250/300/350W
Feeding speed	0~3000mm/s / 0~7000mm/s / 0-7000mm/s
Minimum line width	0.2mm Depending on the format
Minimum character	2mm
Gross power	5/7/10kW / 6/8/10kW / 6/8/9kW
Weight	700kg/800kg/600kg
Supply voltage	220-240V50/60Hz
Working environment	Temp:5~35°C Humidity:5~85% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

Nonmetal material like leather,cloth,wood,bamboo product,organic glass,ceramics,marble,jade,crystal,cloth etc.
