<title>WR Series Automatic Powertrain Laser Welding Production Line

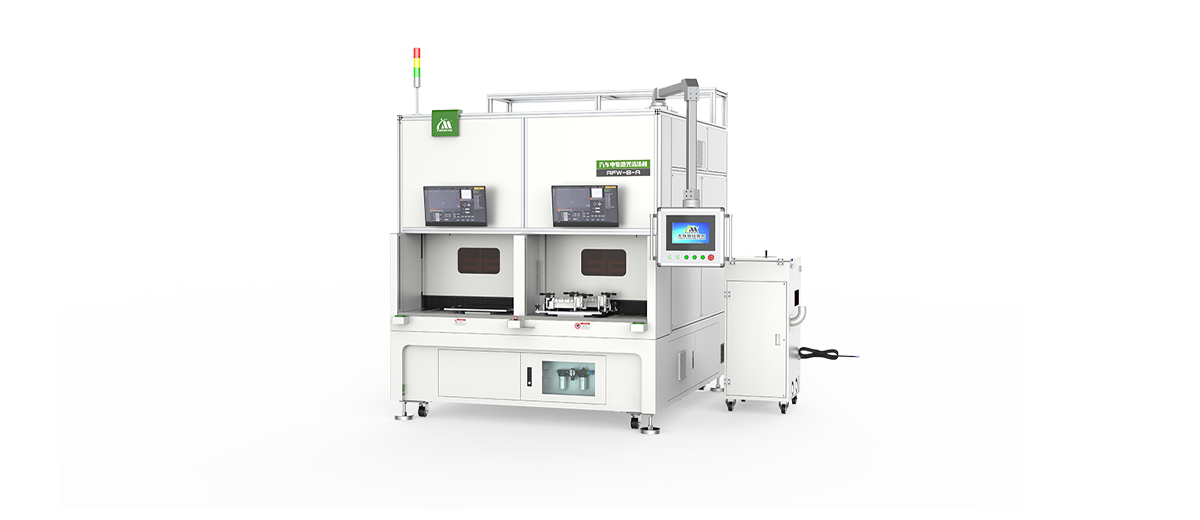

Automobile Electric Drive Laser Washer Series

AFW-B-A

Laser power(w):50~1000W

Equipped with jigs to positioning; dual workstation to load and unload work piece without any stop, increasing the working efficiency greatly; Locate the position of the hole of copper bar through CCD visual system; clean the bar but eliminate the hole, to avoid any damage inside of the hole caused by laser, ensuring the processing quality;

Features

Integrated multi-functions into one, create more value for customer

Equipped with jigs to positioning; dual workstation to load and unload work piece without any stop, increasing the working efficiency greatly
Locate the position of the hole of copper bar through CCD visual system; clean the bar but eliminate the hole, to avoid any damage inside of the hole caused by laser, ensuring the processing quality;
Against the cooperation of the X&Y&Z axis module, focusing and visual positioning of copper bars at different positions and heights, to achieve high efficiency and accuracy;
Adopts a sectional protection design, letting the processing area and feeding area are apart, ensuring no laser leaking out during the operation.

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	AFW-B-A
Laser wavelength	1064nm
Overall dimension	2000×2000×1900mm
Laser power	50~1000W
Speed	≤7000mm/s
Positioning accuracy	±0.2mm
Weight	2000kg
Supply voltage	AC220V /10A±5%
Working environment	Temp: 5~35°C Humidity:5~85% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

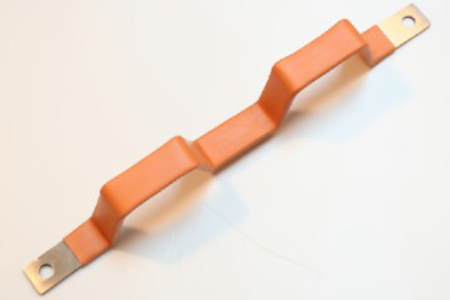

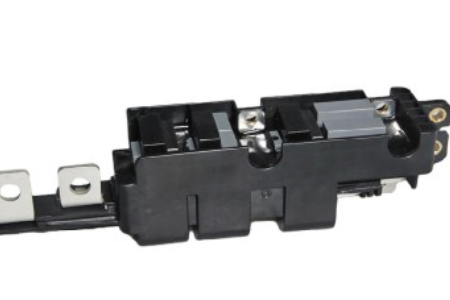

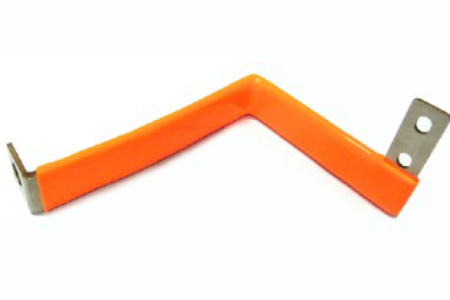

Mainly used for laser paint stripping and cleaning of bus capacitors,filters,and three-phase copper bars,etc.
