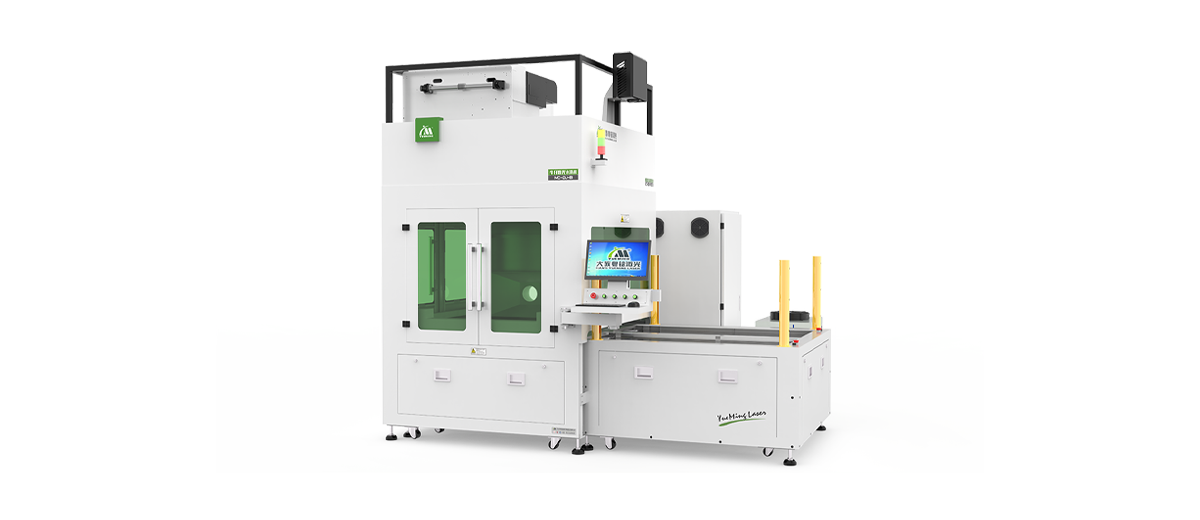

Denim Laser Machine Series

MC-DJ-B

Laser power(w):350/600W

Fully enclosed design and user-friendly panel, easy to operate; Two independent exchanging interactive feeding units, interchangeable feeding through two motion systems, no-stop of loading and unloading, to improve the utilization and efficiency; High-performance CO2 RF laser generator has higher quality laser spot, stable laser power output and performance, enjoys longer serving life;

Features

Integrated multi-functions into one, create more value for customer

Two independent exchanging interactive feeding units, interchangeable feeding through two motion systems, no-stop of loading and unloading, to improve the utilization and efficiency;
High-performance CO2 RF laser generator has higher quality laser spot, stable laser power output and performance, enjoys longer serving life;
Self-developed projection system can correct the deviation of projection image, easy for operation and alignment
Modular design and some functions are optional based on customized requirements.

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	MC-DJ-B/MC-DJ-C
Working area	1300×600mmInteractive platform /1500×1500mm Fixed workbench
Overall dimension	3130×2100×2840mm/3000×1600×2800mm
Laser power	350/600W
Speed	0~7000mm/s
Repeated positioning accuracy	±0.5mm
Gross power	7~12kW
Weight	1500kg/1000kg
Supply voltage	AC380±10% 50/60Hz
Working environment	Temp:10~30°C Humidity:5%-65% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

For denim leather.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
