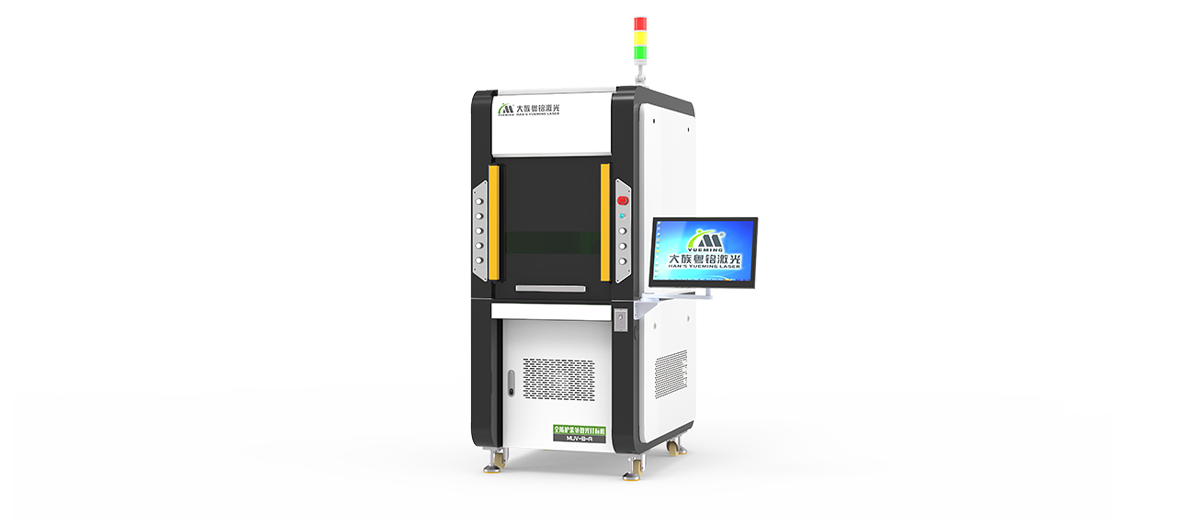

Full Protection UVLaser Marking Machine Series

MUV-B-A

Laser power(w):3/5/10/15W

The rotary worktable can be 2 or 4 stations, suitable for various products, High efficiency for loading & unloading and laser marking at the same time; Full enclosed working area, safe and reliable; Machine equips with motorized lifting system to achieve autofocus, easy for operation, and can cooperate with robot for loading and unloading to achieve automation production;

Features

Integrated multi-functions into one, create more value for customer

The rotary worktable can be 2 or 4 stations, suitable for various products, High efficiency for loading & unloading and laser marking at the same time;
Machine equips with motorized lifting system to achieve autofocus, easy for operation, and can cooperate with robot for loading and unloading to achieve automation production;
Fine laser spot, applied to various materials, and make prefect marking quality;Imported core parts, good performance, long term stable running;
Small space occupation, easy for operation;Self-developed control software, friendly HMI, easy for operation.

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	MUV-B-A/MUV-B-B
Working area	100×100mm/150×150mm/200×200mm
Overall dimension	750×1200×1950mm/820×1600×1800mm
Laser power	3/5/10/15W
Speed	0~8000mm/s / 0~7000mm/s
Repeated positioning accuracy	±0.005mm
Gross power	1.6kW
Weight	250kg/300kg
Supply voltage	AC220±10% 50/60Hz
Working environment	Temp:15~35°C Humidity:5%-85% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

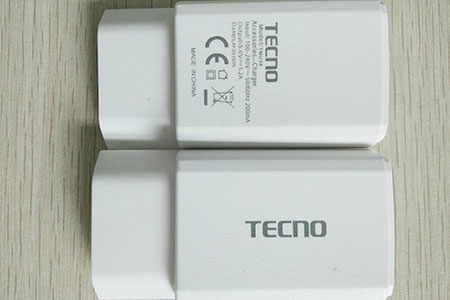

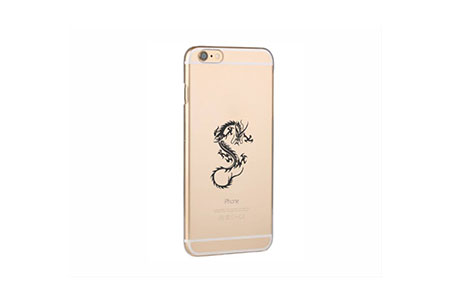

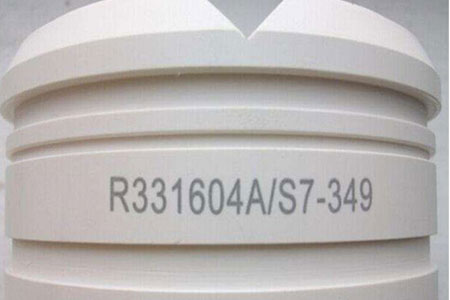

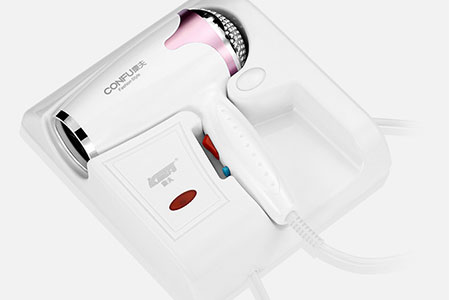

Plastics,stainless steel,Alumina and other metal materials surface marking.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
