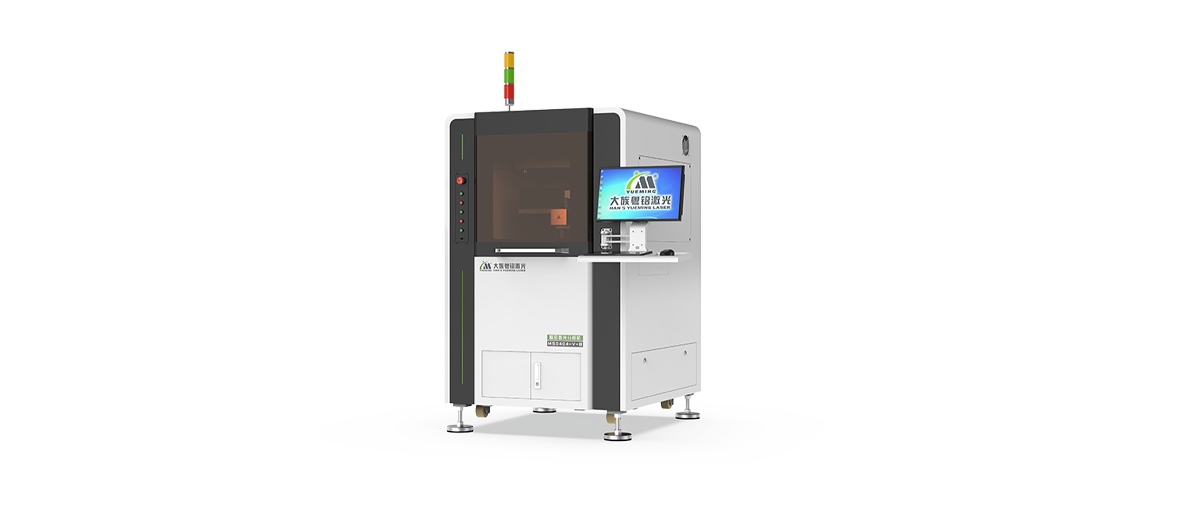

Single Station Circuit Board Laser Plate Machine Series

MSO404-V-B

Laser power(w):（PS/NS）UV Laser: 10～30W;Green laser:30~60W

Professional laser cutting software for PCB industry, and easy for operation;The MES system customization and seamless docking of the production line can be realized. Imported laser source and optic system to ensure machine long term stable performance; CCD module helps to achieve auto-positioning cutting;

Features

Integrated multi-functions into one, create more value for customer

Professional laser cutting software for PCB industry, and easy for operation;The MES system customization and seamless docking of the production line can be realized
Imported laser source and optic system to ensure machine long term stable performance;
CCD module helps to achieve auto-positioning cutting; Optional with linear motor and marble platform to achieve high precision requirement;
Multiple platforms more functions,honeycomb adsorption platform is standard; PCB board transmission track is optional, and prefect match SMTassembly line

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	MS0404-V-B
Working area	400×400mm
Overall dimension	1300×1100×1750mm
Laser power	（PS/NS）UV Laser: 10～30W;Green laser:30~60W
Spot size	<20μm
Accuracy	±10μm
Gross power	5.5kW
Weight	1200kg
Supply voltage	AC220V±10%50/60Hz
Working environment	Temp:15~35°C Humidity:5%-85% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

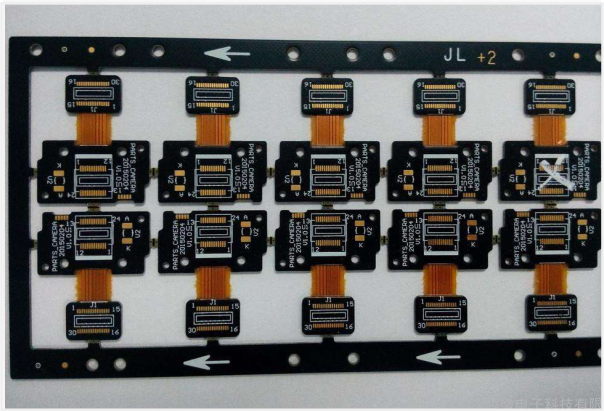

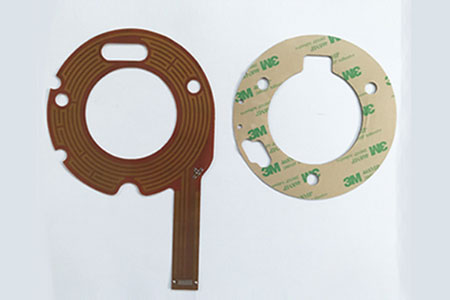

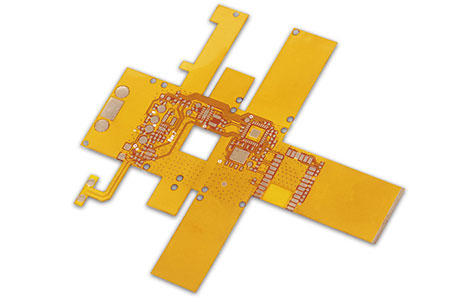

Laser cutting/dividing machine used in electronic industry can be used for fine cutting and dividing of hard board, soft board, covering film and other products.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
