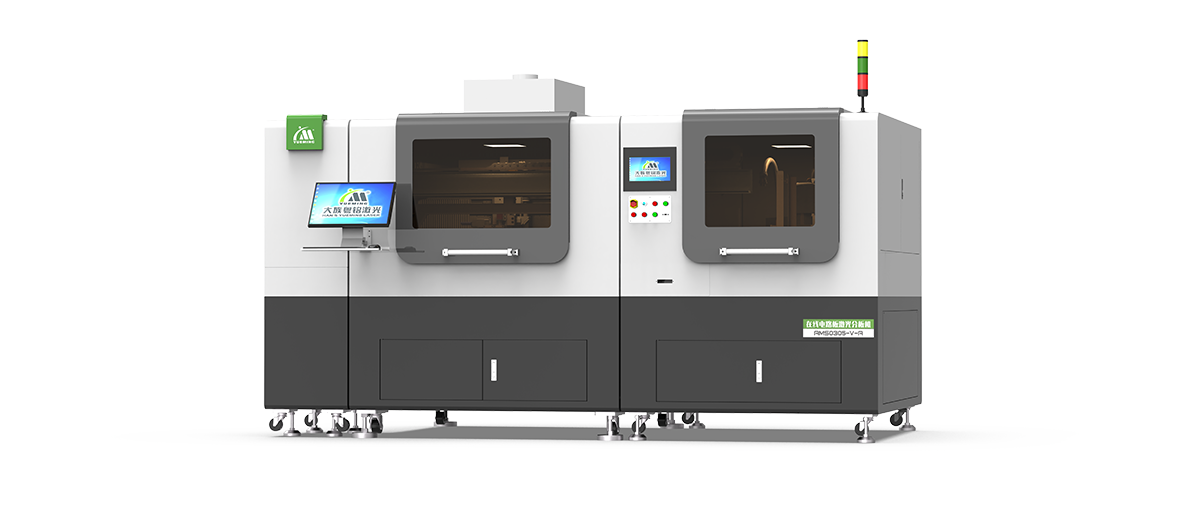

Online Circuit Board Laser Plate Division Machine Series

AMSO305-V-A

Laser power(w):UV Laser：15~30W ;Green Laser：30~60W

Dual cutting table, saving moving time, improving the can cutting efficiency greatly; Equipped with X, Y and Z module in laser cutting area, realizing processing on substrates of different thicknesses; Equipped with high-performance CCD to achieve fast positioning and precise cutting;

Features

Integrated multi-functions into one, create more value for customer

Dual cutting table, saving moving time, improving the can cutting efficiency greatly;
Equipped with X, Y and Z module in laser cutting area, realizing processing on substrates of different thicknesses;
Loading and unloading at the same time, non-stop process, which can improve the production efficiency greatly;
Imported laser source, stable power output and perfect cutting effect, ensuring the cutting consistency;

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	AMS0305-V-A
Working area	50×50~430×430mm
Overall dimension	3500×1800 ×1800mm
Laser power	UV Laser：15~30W;Green Laser：30~60W
Gross power	8KW
Weight	2000kg
Supply voltage	AC 220-240V 50/60Hz
Working environment	Temp:5~40°C Humidity:5%-80% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

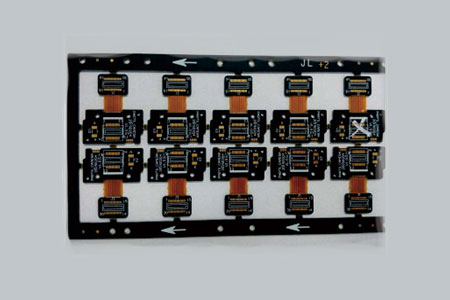

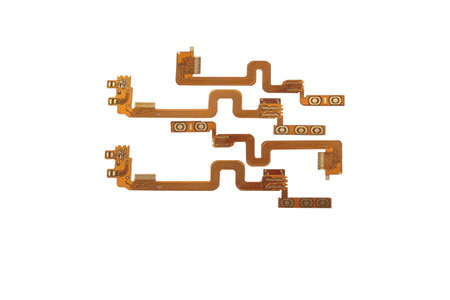

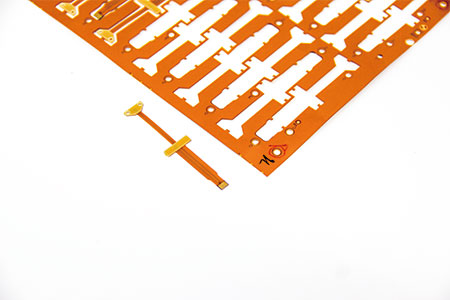

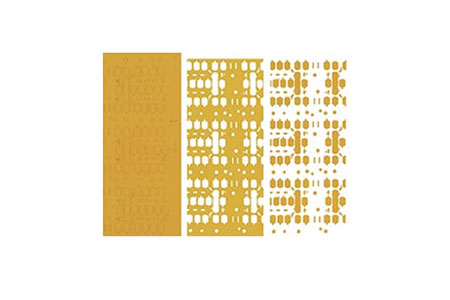

Mainly used for precision cutting of hard boards,soft boards,and cover films etc.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
