FAST Series Fiber Laser Cutter

FAST3015B

Laser power: 3000~20000W

Yueming Laser's FAST series high-speed fiber laser cutting machine is a professional laser processing solution for manufacturing industries such as shipbuilding, bridge construction, engineering machinery, wind power, aerospace, and automotive. The equipment features a gantry double rack and pinion double servo drive transmission system, a large and stable machine tool, a high-quality aluminum crossbeam, and professional and user-friendly cutting software, easily meeting the cutting needs of various metal sheets, including stainless steel and copper plates, using fiber laser laser cutting.

Features

Intergrated multi-functions into one, create more value for customer

Dual-servo drive
Rack and pinion transmission system, dual-servo drive, effectively improve the equipment production efficiency;
High-quality Laser
Applying High-quality laser achieves higher than 30% photoelectric conversion efficiency and the machine will blow air while cutting, which can greatly lower the cost and improve the efficiency;
Advanced cutting versatility
Variable functions available, such as scanning, cutting, blasting perforation, automatic edge finding, etc;
Autofocus laser head
Autofocus laser head realizes 80% less time required for piercing than normal head, which is especially suitable for thick metal sheet and highly reflective materials;
Precision welding bed
Reinforced welding bed processed by 600℃ heat treatment and 24 hours cooling inside the furnace to ensure the steel welded joint stress relief which guarantee the machine tool long-term accuracy and stability;
Intelligent software
The professional laser control system and laser cutting software have the functions of intelligent graphic layout, smooth processing of sharp corners, high-speed drilling, etc., and have super stability and anti-interference ability;

Parameters

Optimization and innovation, make product faster, more stable, more assured

Model	FAST3015B	FAST4020A	FAST6025C	FAST3015C
Working area	3000 x 1500 mm	4000 x 2000 mm	6000 x 2500 m	8000 x 2500 mm
Laser power	3000-12000w	3000-12000w	6000-12000w	3000-12000w
Positioning accuracy	±0.05mm/m	±0.05mm/m	±0.05mm/m	±0.05mm/m
Repeated positioning ac-curacy	±0.03mm/m	±0.03mm/m	±0.03mm/m	±0.03mm/m
Max coordinated speed	140 m/min	140 m/min	140 m/min	140 m/min
Max positioning accelera-tion	1.4g	1.4 g	1.0 g	1.4 g
Allowable Weight	1100kg	2200kg	3500kg	700kg
Machine weight	6000 kg	8500 kg	11200 kg	4000 kg
Overall dimension	9000×2500×2350mm	11100×3450×2460mm	15100×3800×2250mm	8950×2300×2220mm

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Han's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

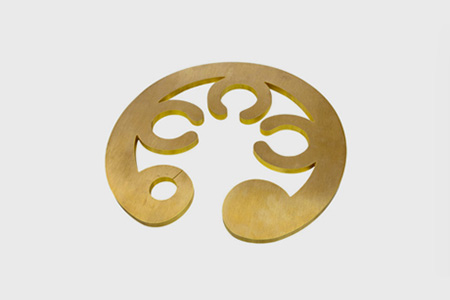

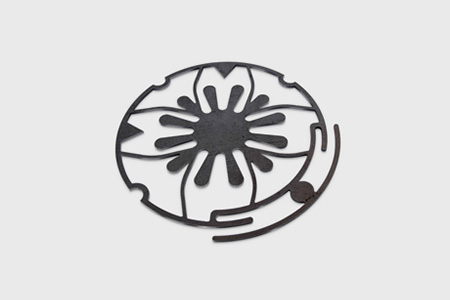

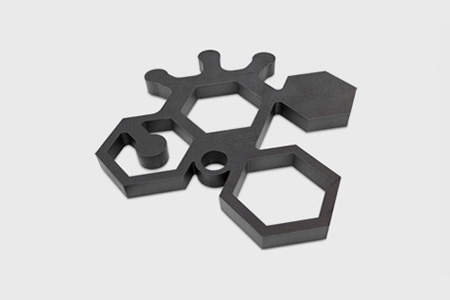

Mainly used for fast 3D cutting of various metal materials such as carbon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, aluminum zinc plated sheet, brass, copper, etc.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
