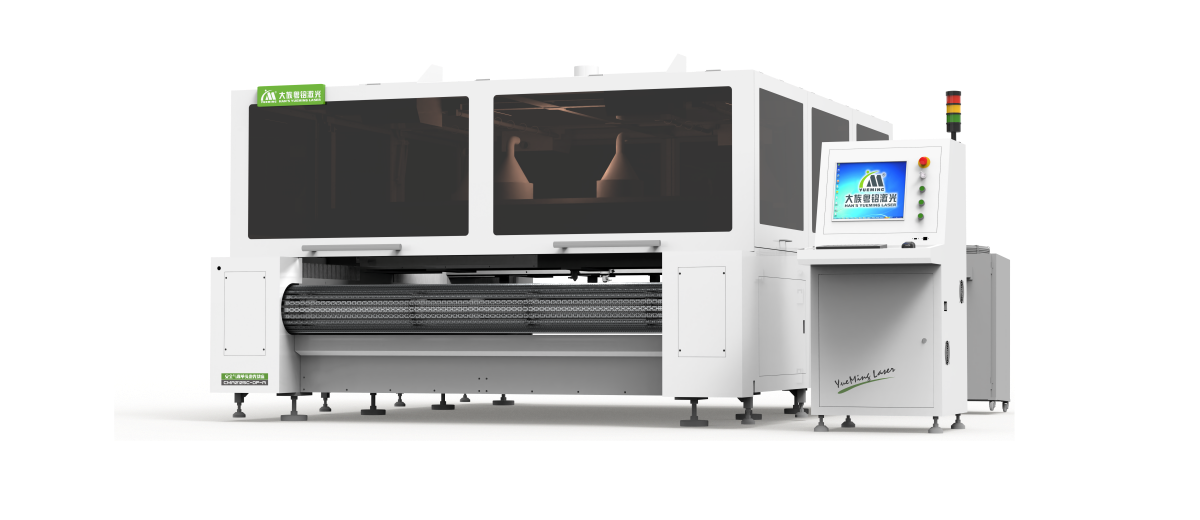

Large-format Laser Cutting Bed Series

CMA2125C-DF-A

Laser power(w):130-350w

Rack & pinion transmission system is adopted to realize the high speed bilateral synchronous drive, which is three times higher in efficiency compared to traditional cutting machines with belt conveyor；Steel frame structure with the overall structure of welding and stress relief treatment, to ensure the machine deformation tolerances within 0.02 mm；

Features

Integrated multi-functions into one, create more value for customer

Adopt linear motor to the transmission system, getting max acceleration up to 4G, max speed up to 150m/min;
Steel frame structure with the overall structure of welding and stress relief treatment, to ensure the machine deformation tolerances within 0.02 mm
Hybrid laser system is adopted to ensure consistent light spot and cutting effect
It could equip with two laser heads to achieve higher efficiency；Distributed air draft structure helps effectively absorb cutting smoke and dust particles for better working environment；Equipped with containment envelope, could enhance safety and reduce accidental injury；

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	CMA2125
Working area	2100×2500mm
Overall dimension	3900×2900×2050mm
Laser power	130~350W
Feeding speed	45m/min
Positioning accuracy	±0.1mm/m
Repeated Positioning accuracy	±0.05mm/m
Weight	3000kg
Supply voltage	Three phase 380V/50Hz
Working environment	Temp:5~40°C Humidity:≤80% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

Air bag ,canvas ,tent ,sofa fabric

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
