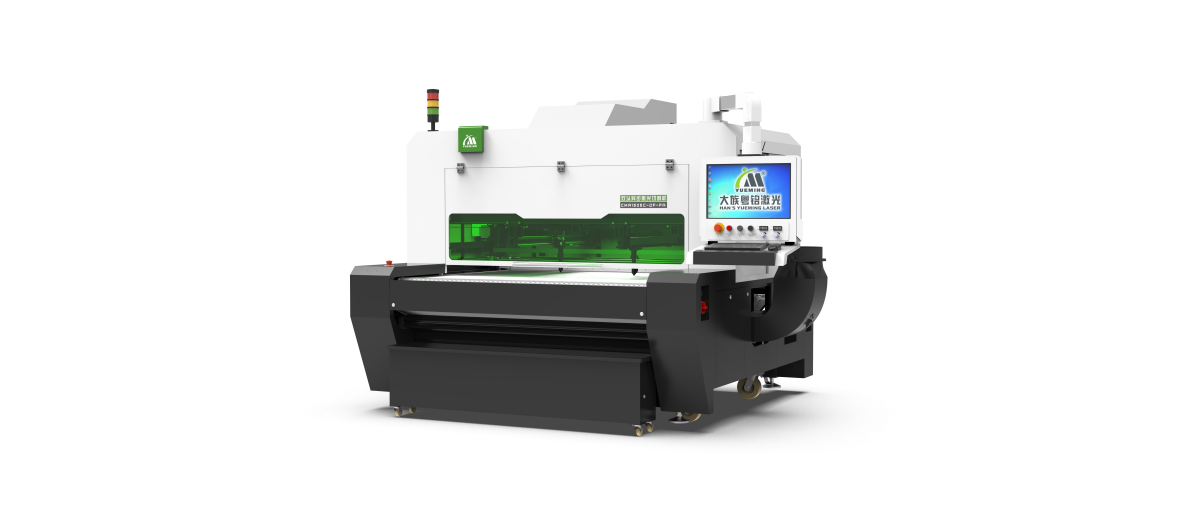

Double-head Asynchronous Automatic Feeding CO2Laser Cutter Series

CMA1606C-DF-FA

Laser power(w):130W

Asynchronous double heads cutting system: Installed self-developed SmartCarve software; the double heads could cut different patterns asynchronously, and the software could assign the nested job to each head to achieve high efficiency; Large format vision cutting system: support printed material contour extraction, support maximum 9 different templates matching and processing

Features

Integrated multi-functions into one, create more value for customer

Asynchronous double heads cutting system: Installed self-developed SmartCarve software; the double heads could cut different patterns asynchronously, and the software could assign the nested job to each head to achieve high efficiency;
Large format vision cutting system: support printed material contour extraction, support maximum 9 different templates matching and processing
Projection function: nesting and collecting by projection, the projected image shows different sizes, different components, left & right patterns .It has convenient nesting and collection function;
Auto-nesting software: The nesting system could nesting in high utilization rate in a short time. The advantages of automatic typesetting can support automatic nesting to double as a unit, also support one foot of row material, mixing, scrap cutter;

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	CMA1606C-DF-FA/CMA1612C-DF-FA
Working area	1550×550mm/1550×1150mm
Overall dimension	2400×2115×1910mm/2780×2905×2065mm
Laser power	130W
Speed	0~24m/min
Weight	850kg/1200kg
Supply voltage	(Machine):(Single phase) AC220V(Fan):380V，50/60Hz
Working environment	Temp:5~40°C Humidity:5~80% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

Cutting of flexible composite materials for automobile safety airbags .
