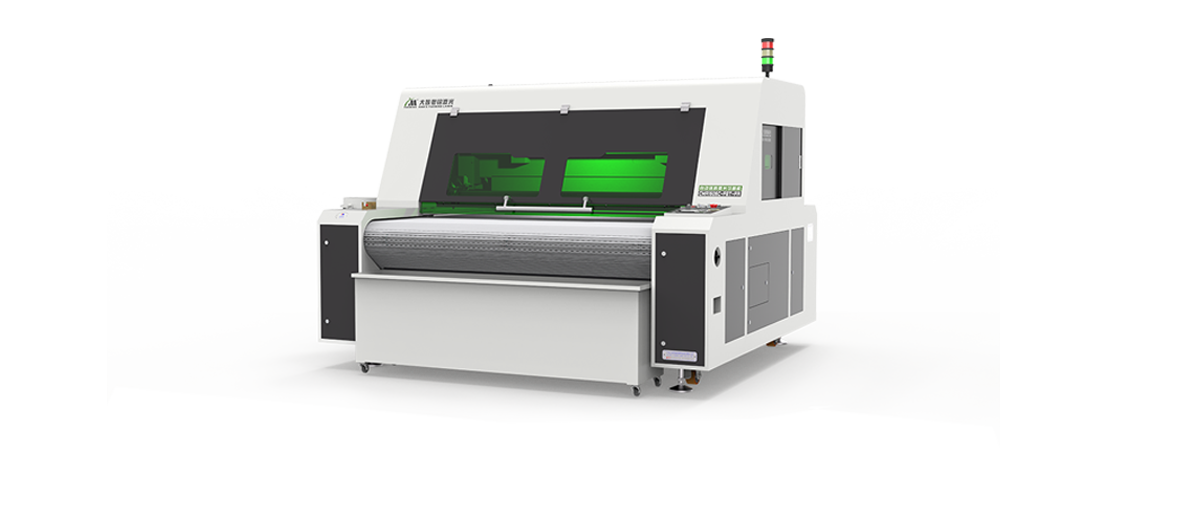

Electric Double-head Automatic Feeding CO2Laser Cutting Machine Series

CMA1606C-FET-FA

Laser power(w):130W

Isolated working area and collecting area, synchronous processing and collecting, which not only improve the efficiency without pausing the machine, but keep the operator from light path system and motion system during work, ensuring production to higher safety standard;

Features

Integrated multi-functions into one, create more value for customer

Isolated working area and collecting area, synchronous processing and collecting, which not only improve the efficiency without pausing the machine, but keep the operator from light path system and motion system during work, ensuring production to higher safety standard;
Front & back synchronous & auto-tracking material-pressed device: Front auto-tracking material-pressed device ensures the accuracy of feeding, and back material-pressed device avoids material shaking during work. Even when cutting several layers of material in the same time, this device can make sure the working accuracy;
Epsilon-type aluminum conveyor (Han’s Yueming self-owned Intelligent Property), easy for maintenance by piece with low cost;Motion system, adopts the design of outer rail module, stronger structure, and easier to adjust;
High quality imported motors, synchronous belt and optical lens to ensure machine’s stable performance;Fully enclosed laser path design, comply with CE safety certification

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	CMA1606C-FET-FA
Working area	1500×600mm
Overall dimension	2385×2190×1900mm
Laser power	130W
Speed	0~18m/min
Weight	980kg
Supply voltage	(Machine):(Single phase) AC220V(Fan):380V，50/60Hz
Working environment	Temp:5~40°C Humidity:5~80% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

Cutting of flexible composite materials for automobile safety airbags .

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
