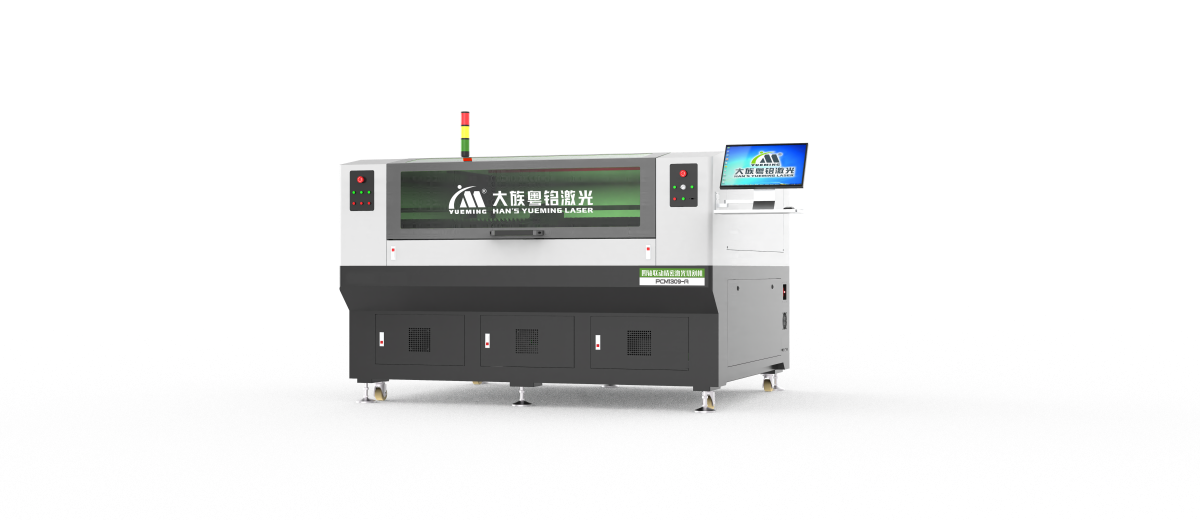

Four-Axis Linkage Precision Laser Cutting Machine Series

PCM1309-A

Laser power: 180W
The combination of high-speed galvanometer and large-format platform enables ultra-large format, ultra-high efficiency, and ultra-high-speed processing; Adopt high-precision ball screw system and gantry dual-drive structure, with high transmission efficiency and position accuracy, which ensures the smooth operation, and stable performance Equipped with CO2 laser generator, which can be applied to do fast marking and cutting of large-format and complex graphics on film, fabrics, and stickers etc; Equipped with fiber laser generator (optional), which can be applied to large-format processing such as large-format marking on stainless and large-format film removing on glass

Features

Intergrated multi-functions into one, create more value for customer

Equipped with CO2 laser generator, which can be applied to do fast marking and cutting of large-format and complex graphics on film, fabrics, and stickers etc;
The single-drive screw transmission structure is adopted to achieve improvement in cutting accuracy and efficiency;
Equipped with UV laser (optional), which can be applied to large-format fine patterns marking on acrylic, and polymer materials, etc;
Self-developed four-axis linkage system, achieving real fly marking, saving time and labor cost, especially suitable for high-speed marking and cutting of large and complex graphics;

Specification

Optimization and innovation, make product faster, more stable, more assured

Model	PCM1309-A
Laser power	CO₂180W
Working area	1300×900mm
Spot size	＜20um
Accuracy	±0.05mm
X/Y working platform	Screw platform
Gross power speed	5.5kW
Overall dimension	2800×2050 ×1850mm
Weight	1500kg
Supply voltage	AC220V±10% 50/60Hz
Working environment	Temp:15~30° CHumidity: 5% ≤ 80% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dazu Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

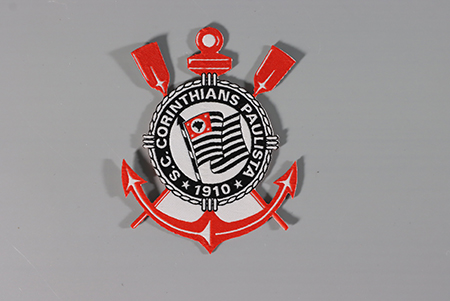

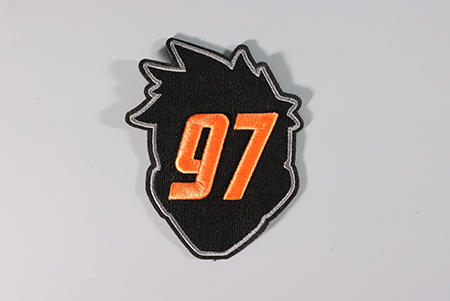

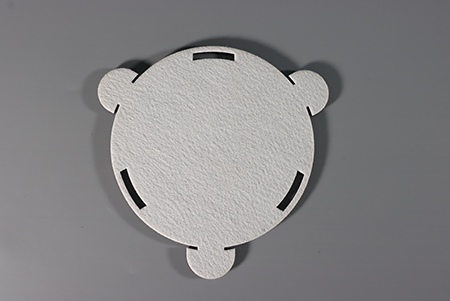

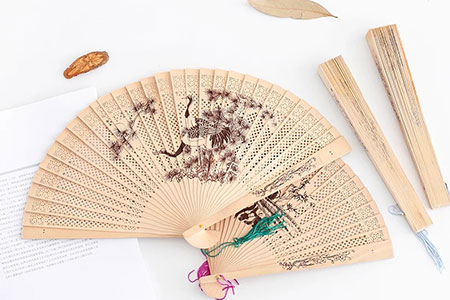

Suitable for fast cutting of non-metallic materials such as acrylic , wood , cardboard , density board , leather , and etc .

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
