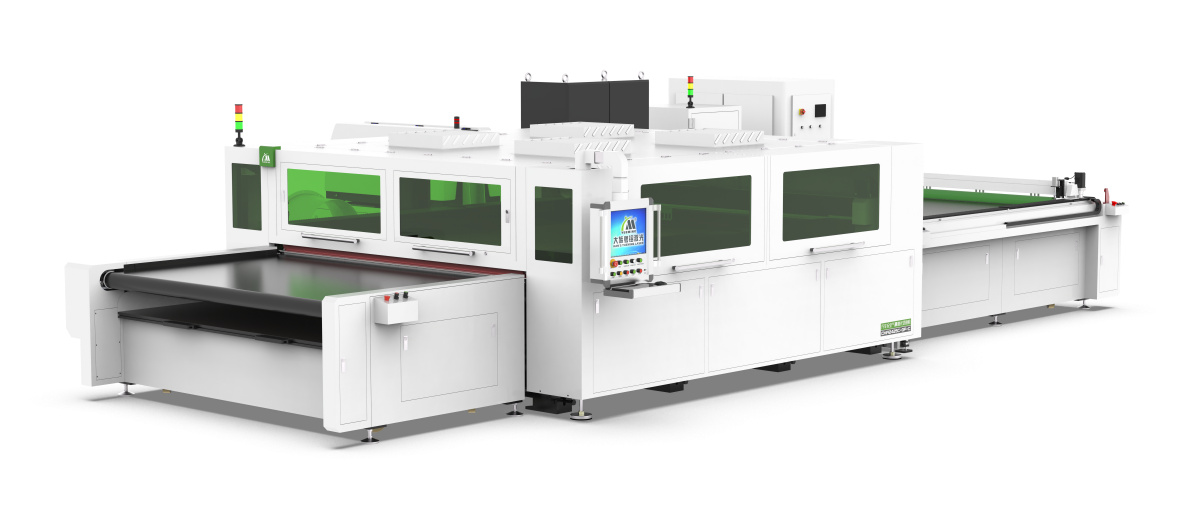

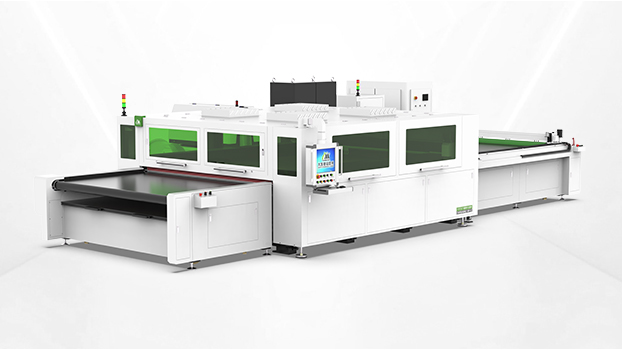

SpanishAir Bag Single Head Laser Cutting Bed Series
CMA2425C-GF-A
- Laser power(w):3000W
The transmission adopts a dual-servo, gantry rack-and-pinion drive with highinertia, high-torque motors, delivering up to 3G acceleration and Max positioning speed of 120m/min.A high-rigidity reinforced welded bed is precision-milled on a large gantry machining center and undergoes secondary annealing to effectively relieve internal stress.The brand-new laser generator ensures excellent beam quality and stable output for high-precision cutting.
Features
Integrated multi-functions into one, create more value for customer
The transmission adopts a dual-servo, gantry rack-and-pinion drive with highinertia, high-torque motors, delivering up to 3G acceleration and Max positioning speed of 120m/min.
The brand-new laser generator ensures excellent beam quality and stable output for high-precision cutting.The carbon-fiber crossbeam is FEA-optimized to balance weight, rigidity, and dynamic performance.
An air-purged optical path greatly reduces optics maintenance frequency and easy for operator.Reflective optics integrate a digital temperature sensor for real-time monitoring; abnormal temperatures trigger an alarm and pause operation to enhance safe production
Professional software offers multi-layer workflows and rich parameters tailored for automotive airbags laser cutting, plus intelligent graphic segmentation.An optional OEE system supports smart manufacturing and Industry 4.0 requirements
Parameters
Optimization and innovation, make product faster, more stable and more assured.
| Model | CMA2425 | |||
|---|---|---|---|---|
| Working area | 2400×2500mm | |||
| Overall dimension | 10300×3800 ×1900mm | |||
| Laser power | 3000W | |||
| Feeding speed | 120m/min | |||
| Positioning accuracy | ±0.1mm/m | |||
| Repeated Positioning accuracy | ±0.05mm/m | |||
| Supply voltage | Three phase 380V/50Hz | |||
| Weight | 13T | |||
| Maximum accelerated | 3G | |||
| Working environment | Temp:5~40°C Humidity:≤80% Clean | |||
*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.
Application
Air bag , canvas , tent , sofa fabric.
Car airbag laser cutting
Car airbag laser cutting
Car airbag laser cutting
