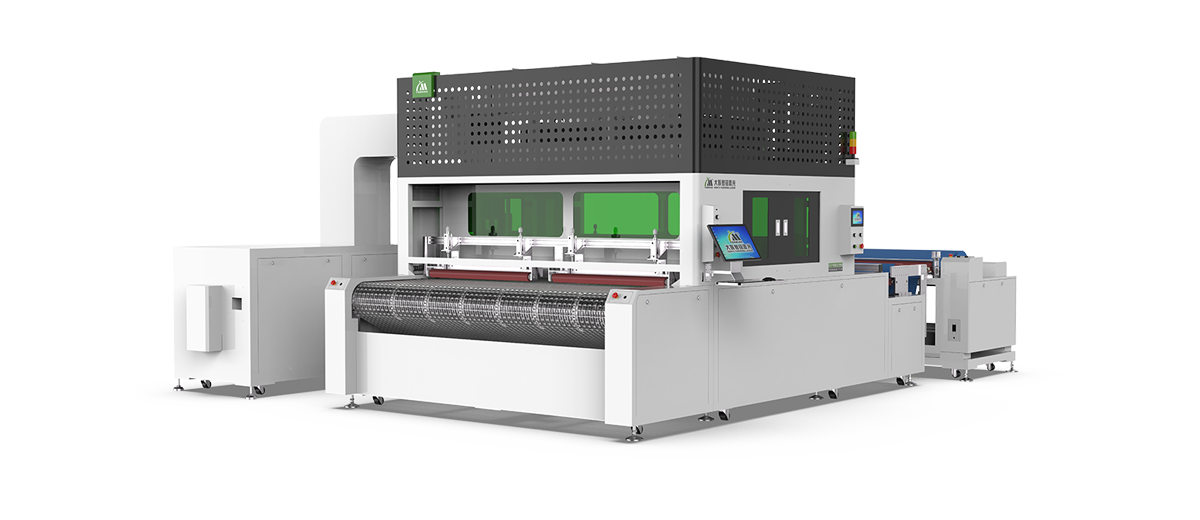

Airbag Laser Flycut Series

FCA2400-T-A

Laser power(w):350/600/ 1000/2000W

Adopts high-energy non-contact cutting on single-layer fabric, no need adding release liner. The worktable integrates automatic cleaning, eliminating manual piece removal and significantly reducing consumables, tooling, and labor costs.Self-developed high-speed galvo and high-speed fly-cutting CNC system, enable multi-galvo on-the-fly cutting, significantly increasing processing efficiency and productivity

Features

Integrated multi-functions into one, create more value for customer

Adopts high-energy non-contact cutting on single-layer fabric, no need adding release liner. The worktable integrates automatic cleaning, eliminating manual piece removal and significantly reducing consumables, tooling, and labor costs.
Self-developed high-speed galvo and high-speed fly-cutting CNC system, enable multi-galvo on-the-fly cutting, significantly increasing processing efficiency and productivity.
Imported servo feeding system and customized large-format mesh conveyor ensure smooth, accurate feeding.
Equipped with an automatic unwinding and edge-control system for higher feeding accuracy, enabling large-format cutting of unlimited length graphics

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	FCA2400
Working area	2400mm*Infinite length
Overall dimension	7136×5326 ×3000mm
Laser power	350/600/ 1000/2000W
Feeding speed	20m/min
Repeated Positioning accuracy	±0.05mm
Gross power	128KW
Weight	10T
Supply voltage	380V/50Hz
Working environment	Temp:5~40°C Humidity:≤80% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

Cutting of flexible composite materials for automobile safety airbags

Car airbag laser cutting
Car airbag laser cutting

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
