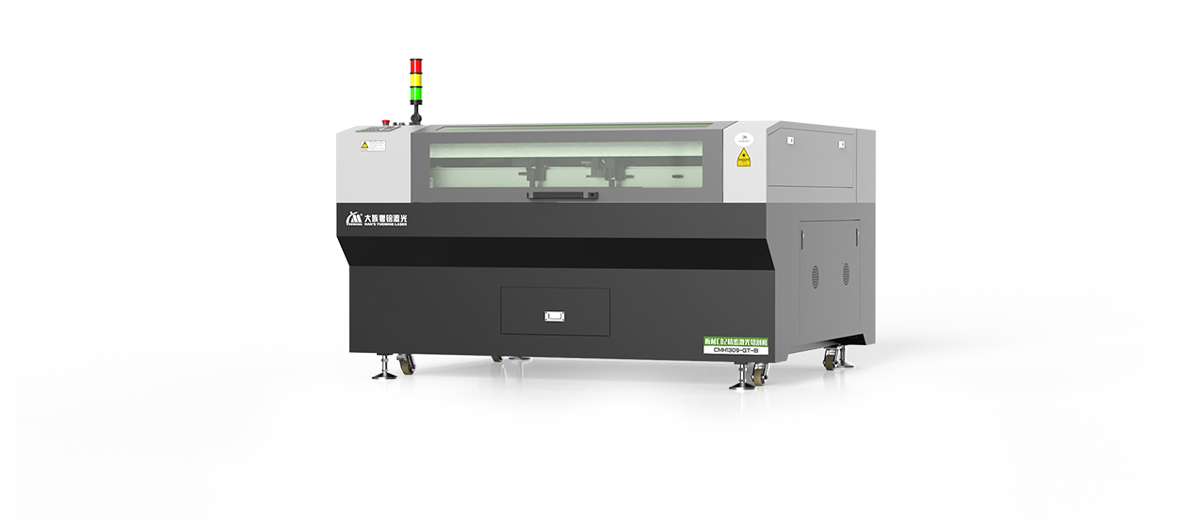

Plate CO2 Precision Laser Cutting Machine Series

CMH1309C-GT-B

Laser power: 130W/180W /300W
Reinforced welding bed processed by the large gantry precision milling, 600℃ heat treatment and 24 hours cooling inside the furnace to ensure the steel welded joint stress relief, which guarantee the machine tool longterm accuracy and stability;

Features

Intergrated multi-functions into one, create more value for customer

Reinforced welding bed processed by the large gantry precision milling, 600℃ heat treatment and 24 hours cooling inside the furnace to ensure the steel welded joint stress relief, which guarantee the machine tool longterm accuracy and stability;
The single-drive screw transmission structure is adopted to achieve improvement in cutting accuracy and efficiency;
Advanced 32-bit high-speed DSP is applied in the controller, which ensures excellent performance and instant response;
Optional high-precision CCD camera, supports mark point and feature recognition processing, suitable for diversified and personalized pattern processing.

Specification

Optimization and innovation, make product faster, more stable, more assured

Model	CMH1309C-G-B	CMH1309C-GT-B
Laser power	130W/180W/300W	130W/180W/300W
Working area	1300× 900mm	1300× 900mm
Speed	15m/ min	15m/ min
Repeated positioning accuracy	±0 .1 mm /1000mm	±0 .1 mm /1000mm
Transmission system	Screw Single Drive + rail	Screw Single Drive + rail
Gross power speed	2.2kW	3kW
Overall dimension	2105× 1800 × 1180mm	2105× 1800 × 1180mm
Weight	600kg	650kg
Supply voltage	AC220 ~ 240V 50/60Hz	AC220 ~ 240V 50/60Hz
Working environment	Temp:0~40° CHumidity: ≤ 80% Clean	Temp:0~40° CHumidity: ≤ 80% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dazu Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

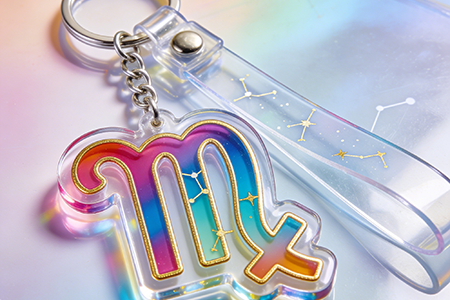

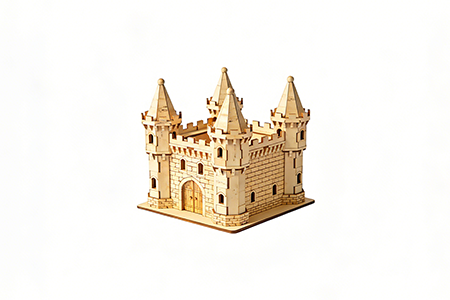

Suitable for fast cutting of non-metallic materials such as acrylic , wood , cardboard , density board , leather , and etc .

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
