<title>SF Series 3D Five-Axis Fiber Laser Cutting Machine

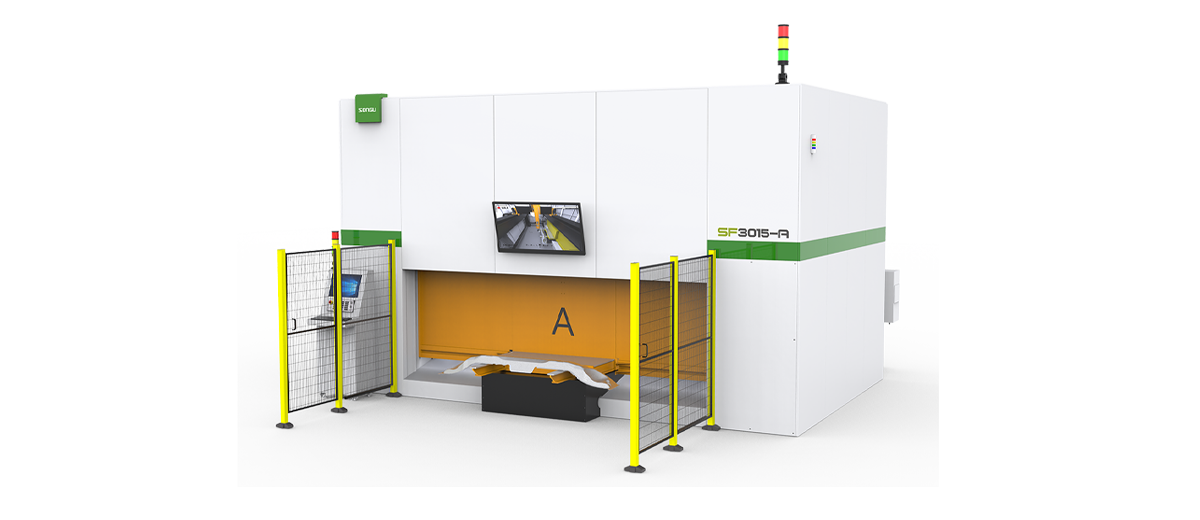

3D5-Axis Fiber Laser Cutting Machine Series

SF Series

Laser Power: 1000-6000W

Yueming Laser Technology’s CutRobot series 3D robot fiber laser cutting machine has an autofocus laser head to protect critical components, a high-precision industrial robot, and a safety interlock design. Suitable for 3D laser cutting of metal covers, metal parts, and automotive parts.

Learn More About 3D Five-Axis Laser Cutting Machine

Features

Integrated multi-functions into one, create more value for costumer

Autofocus laser head
Equips with autofocus laser head, low machine cost;
Collision protection
The robot and the cutting head are equipped with reliable collision quick reset device to effectively protect the key parts;
Intuitive smart terminal
Adopts intelligent operation terminal, simple interface, clear marks, and it is easy to learn, embedded process database, easy for operators to learn and master the skills;
Agile precision robot
precision industrial robot, aluminum alloy arm, light weight Robot is fixed on crane gantry, which enjoys large working range and easy for loading and unloading, and it can process large sheet metal forming parts;
Automated production line
It can organize a certain number of cutting units to form an automated production line to meet the production needs of medium batch;
Enhanced safety enclosure
The fully enclosed protection housing adopts the safety interlock design, effectively isolating the processing zone, avoiding the laser radiation damage and with high safety;
Advanced robotic cutting
6-axis robot with high trajectory accuracy to ensure cutting accuracy; High rigidity, high strength gantry frame structure to ensure stability.

Specification

Optimization and innovation, make product faster, more stable, more assured

Model	SF3015	SF3122	SF4020	SF4025	SF4525
Working area	3000x1500x850mm	3100x2200x850mm	4000x2000x850mm	4000x2500x850mm	4500x2500x850mm
Laser power	1000~6000W	1000~6000W	1000~6000W	1000~6000W	1000~6000W
Positioning accuracy	±0.05mm	±0.05mm	±0.05mm	±0.05mm	±0.05mm
Repeated positioning accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Maximum moving speed	100m/min	100m/min	100m/min	100m/min	100m/min
Maximum accelerated	1.0G	1.0G	1.0G	1.0G	1.0G
Weight	12000-18000kg	12000-18000kg	12000-18000kg	12000-18000kg	12000-18000kg

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

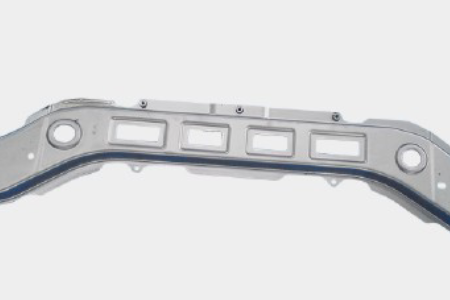

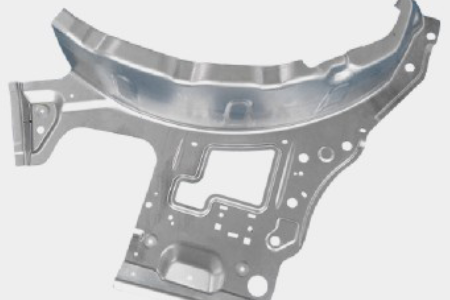

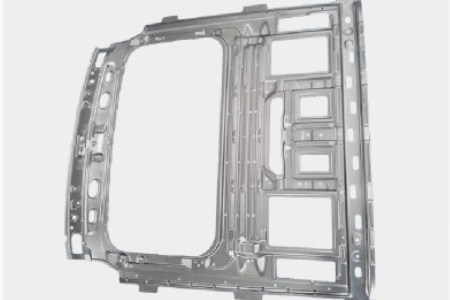

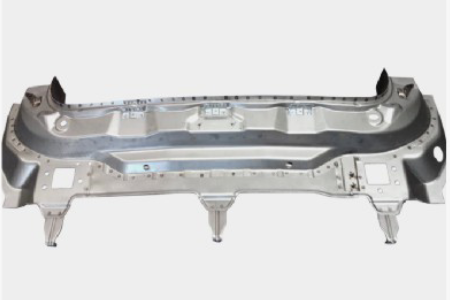

3D laser processing of automobile thermoformed parts, 3D metal forming parts,curved parts, specia-shaped pipes, et. for rapid cuting, trimming, and driling

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
