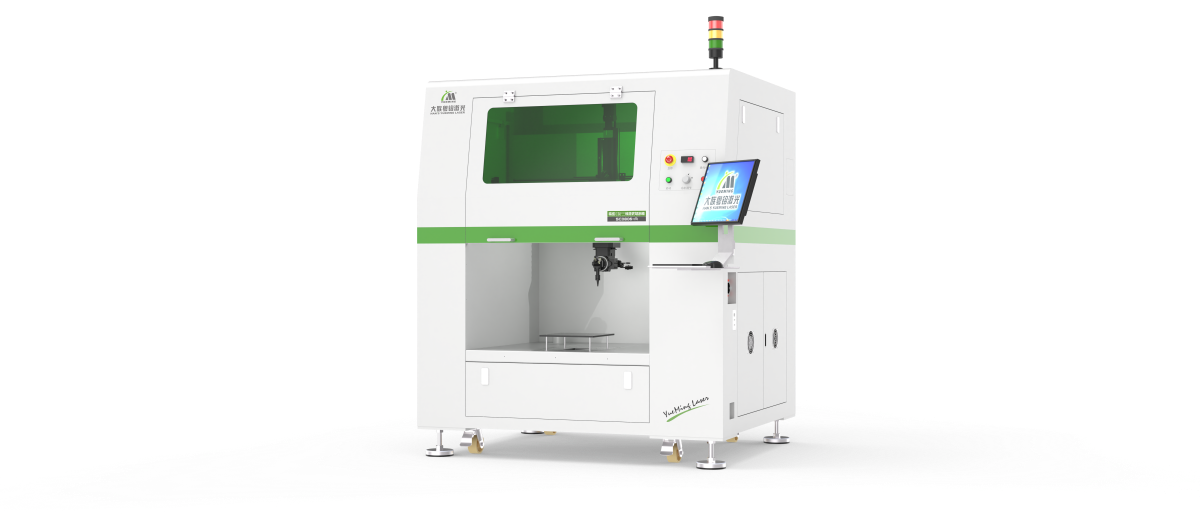

High-precision Hybrid Optical Path 3D Laser Cutter Series

SC0806-A Series

Laser power: Customized according to customer requirements

Yueming Laser's high-precision hybrid optical path 3D laser cutting machine series adopts a professional 3D five-axis CNC system, enabling high-speed cutting of complex curved 3D parts; it features a high-mounted gantry dual-drive structure and can be equipped with worktables suitable for large and small formats; it is equipped with a manual control teach pendant for simple operation; classic applications include laser cutting of automotive plastic parts and automotive spoilers.

Features

Integrated multi-functions into one, create more value for customer

Adopt the professional 3D five-axis CNC system: C-axis rotating N*360°; Baxis swinging to left&right ±135°, being able to realize high-speed cutting on parts with complex curved surface;
Gantry dual-drive structure, high-precision ball screw, high-precision reducer and servo drive transmission, ensuring its stable running, faster positioning speed, higher precision and better dynamic performance;
Anti-collision protection of the cutting head: when subjected to a certain lateral force, the cutting head will fall down automatically to avoid accuracy deterioration or damage caused by excessive force on the main spindle;
Integrating the function of EtherCAT bus communication with laser control together, getting faster transmission efficiency and stronger antiinterference capabilities, without control several software at the same time;

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	SC0806-A/SC1205-A/SC1505-A
X/Y/Z travel	750×600×200mm/1350×600×200mm/1500×500×300mm
Overall dimension	1650×1450×2250mm/2235×1403×2150mm/2335×1405×2150mm
Laser power	100W/80~180W/130W
Maximum speed	0.5m/s/0.24m/s/0.2m/s
Repeated Positioning accuracy	±0.05mm/±0.1mm/±0.1mm
Gross power	6.5kW/5.7kW/5.7kW
Weight	1000kg/1500kg/1500kg
Supply voltage	380V/50Hz
Working environment	Temp:5~40°C Humidity:≤80% Clean

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

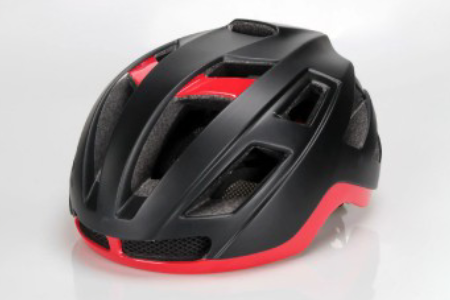

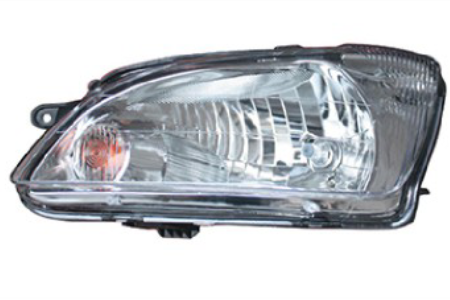

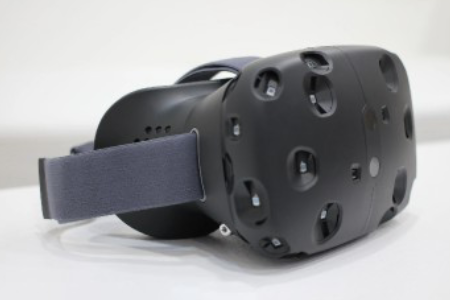

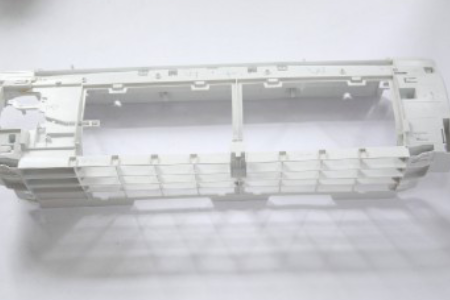

Suitable for laser processing of specialshaped parts of products such as automotive interior and exterior plastic parts, household electrical appliances plastic parts, VR glasses, safety helmets, underwear cups, audio wrapping and etc.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
