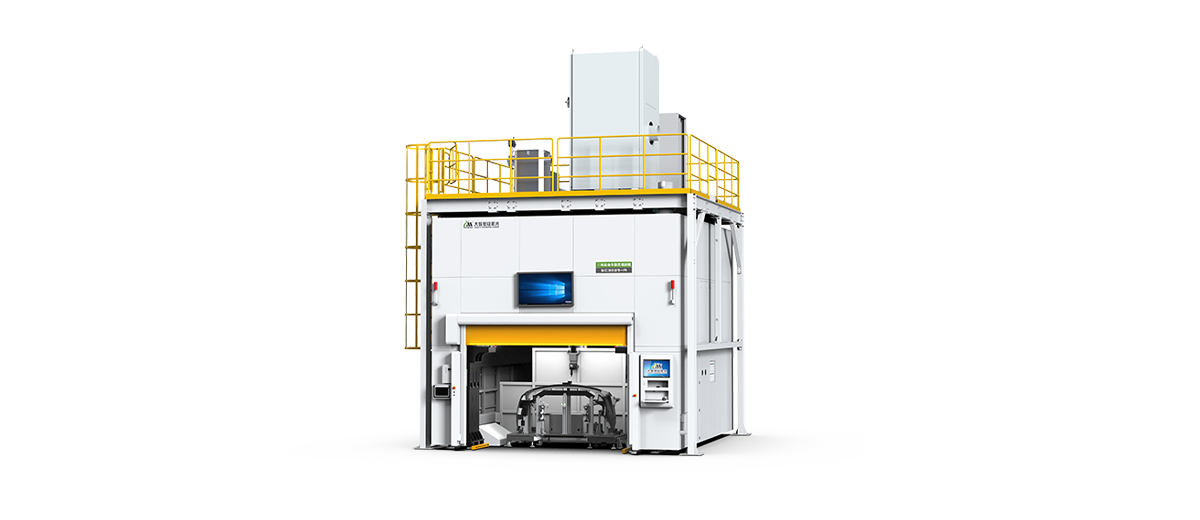

Automotive bumper 3D five-axis laser cutting machine

SC3025 Series

Laser power: Customized according to customer requirements

Enhanced welding bed, annealing stress relief, large gantry precision milling, ensuring long-term stability.Moving gantry design, stable optical system, imported optical lenses and professional laser head.Original imported RF CO2 laser generator with high processing efficiency and superior, stable performance.Optical path is within 5 meters (maximum), ensuring near-to-far beam spot consistency and processing quality.Rack-and-pinion transmission with servo drives and heavy-duty precision linear guides ensure smooth, stable performance.

Features

Integrated multi-functions into one, create more value for customer

Enhanced welding bed, annealing stress relief, large gantry precision milling, ensuring long-term stability.
Moving gantry design, stable optical system, imported optical lenses and professional laser head.
Original imported RF CO2 laser generator with high processing efficiency and superior, stable performance
Optical path is within 5 meters (maximum), ensuring near-to-far beam spot consistency and processing quality

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	SC3025
X/Y/Z travel	2500×3000×1250mm
Overall dimension	6000×5500×6700mm
Laser power	350W
Maximum speed	30m/min
Repeated Positioning accuracy	±0.03mm/m
Gross power	40kW
Weight	1500kg
Supply voltage	AC380V50Hz
Working environment	Temp:5~40°C Humidity:≤80% Clean

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

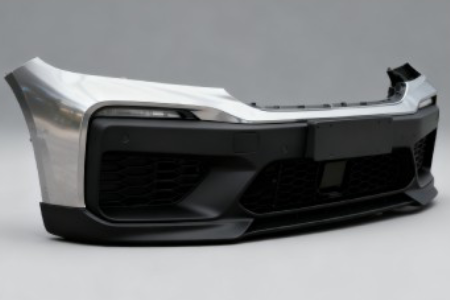

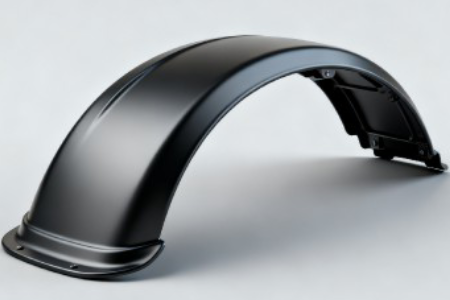

Mainly used for car bumper cutting, trimming, and other non-metalic curved parts, irregular parts efficient cutting.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
