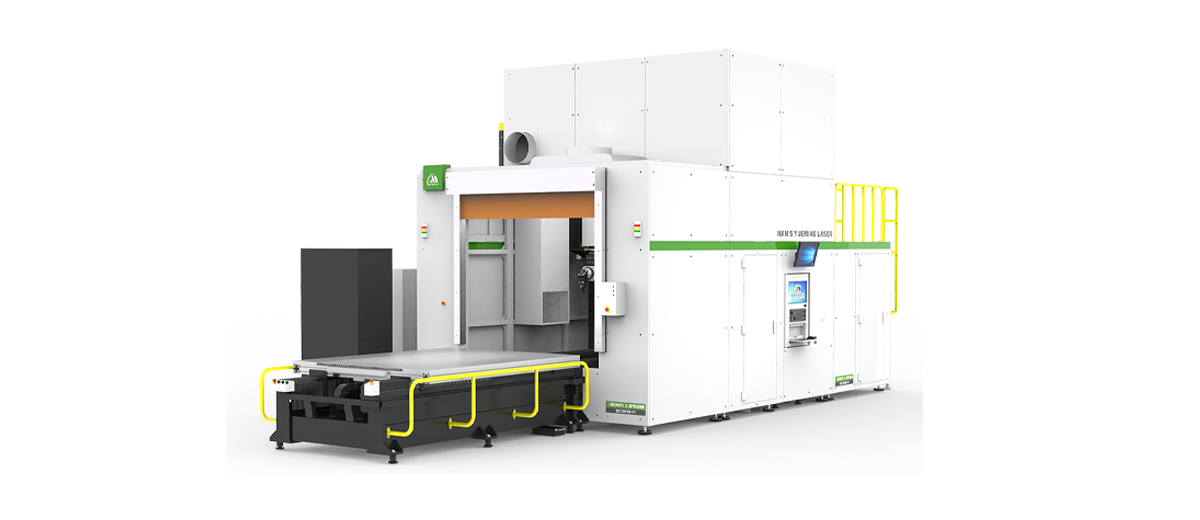

3d High-power Laser Cutting Machine Series

SC3018-A Series

Laser power: 2000/3000w

Reinforced welding bed, fine milled by large gantry, with annealing treatment to eliminate the stress, , ensuring the long-term stable running;Self-developed BC-axis cutting head, with slender nozzle and anticollision design, enables C-axis rotate n*360°, and B-axis swing 130°;Imported CO2 laser generator, stable output and performance, high cutting precision, smooth and fine cutting edge

Features

Integrated multi-functions into one, create more value for customer

Reinforced welding bed, fine milled by large gantry, with annealing treatment to eliminate the stress, , ensuring the long-term stable running;
Self-developed BC-axis cutting head, with slender nozzle and anticollision design, enables C-axis rotate n*360°, and B-axis swing 130°;
Imported CO2 laser generator, stable output and performance, high cutting precision, smooth and fine cutting edge;
High-precision transmission system, rack + lead screw structure, gantry + fixed beam design, and Y direction slide.

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	SC3018-A
X/Y/Z travel	3000×1800 ×550mm
Overall dimension	9500×5300×4300mm
Laser power	2000W/ 3000W
Feeding speed	30m/min
Repeated Positioning accuracy	±0.05mm
Gross power	128KW
Weight	8000kg
Supply voltage	380V/50Hz
Working environment	Temp:5~40°C Humidity:≤80% Clean

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

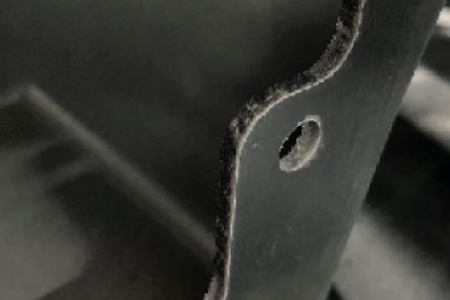

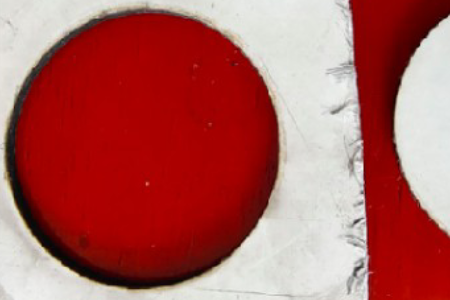

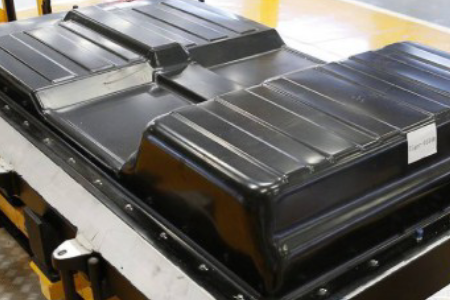

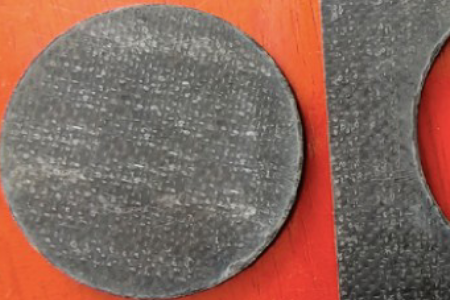

Mainly applied to high-power 3D laser processing of new energy vehicle's battery cover, carbon fiber panel, and fiberglass resin composite panels,etc.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
