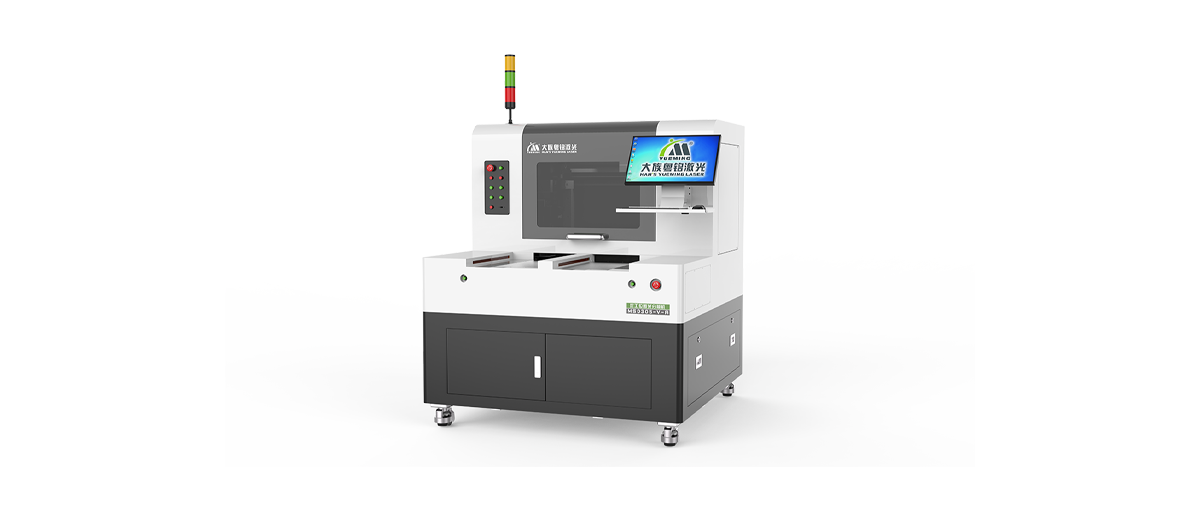

Dual-Station Circuit Board Laser Plate Division Machine Series

MS0605-V-A

Laser power(w):UV Laser： 15~30W;Green Laser：30~60W

Multiple working platforms with multiple functions to meet the processing requirement for soft&hard PCB board as well as the cover film. Imported UV laser generator with intra-cavity frequency doubling technique: small light spot, exquisite marking , small heat effect, good cutting result. Imported digital high-speed mirror: small size, high speed, good stability.

Features

Integrated multi-functions into one, create more value for customer

Multiple working platforms with multiple functions to meet the processing requirement for soft&hard PCB board as well as the cover film.
Imported UV laser generator with intra-cavity frequency doubling technique: small light spot, exquisite marking , small heat effect, good cutting result.
Imported digital high-speed mirror: small size, high speed, good stability. High-performance CCD visual system enables auto-positioning cutting.
Imported UV laser generator & optical system, ensuring sable working under long-time working condition. Full optical pathway protection ensures safer operation.MTassembly line.

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	MS0605-V-A/MS0305-V-A
Working area	650×550mm/350×500mm×2
Overall dimension	1400×1550×2050mm/1400×1450×2000mm
Laser power	UV Laser：15~30W;Green Laser：30~60W
Accuracy	±20μm
Gross power	5.5kW
Spot size	＜20μm
Supply voltage	AC220±10% 50/60Hz
Working environment	Temp:15~35°C Humidity:5%-85% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

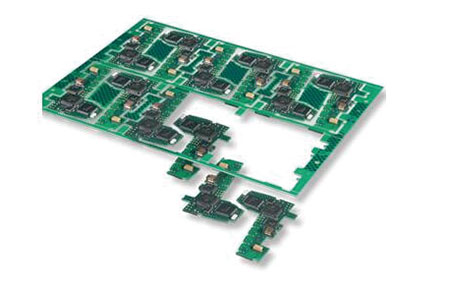

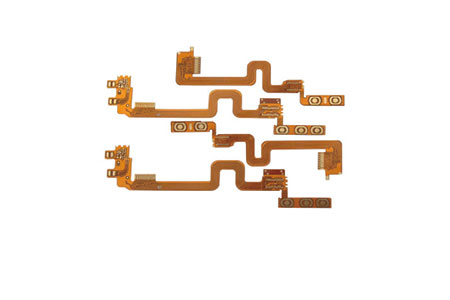

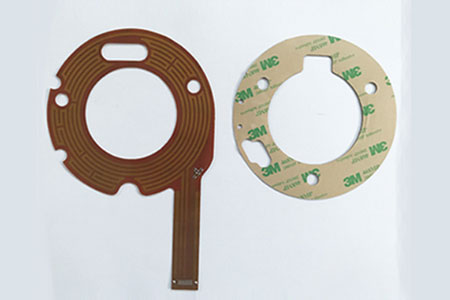

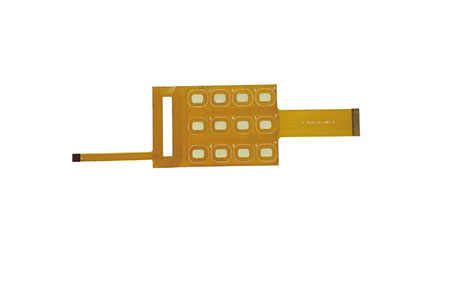

It can be applied to the fine cutting and sub-board processing of hard boards, soft boards, cover films and other products.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
