<title>Tube Series 2-Chunk Loading Tube Laser cutter

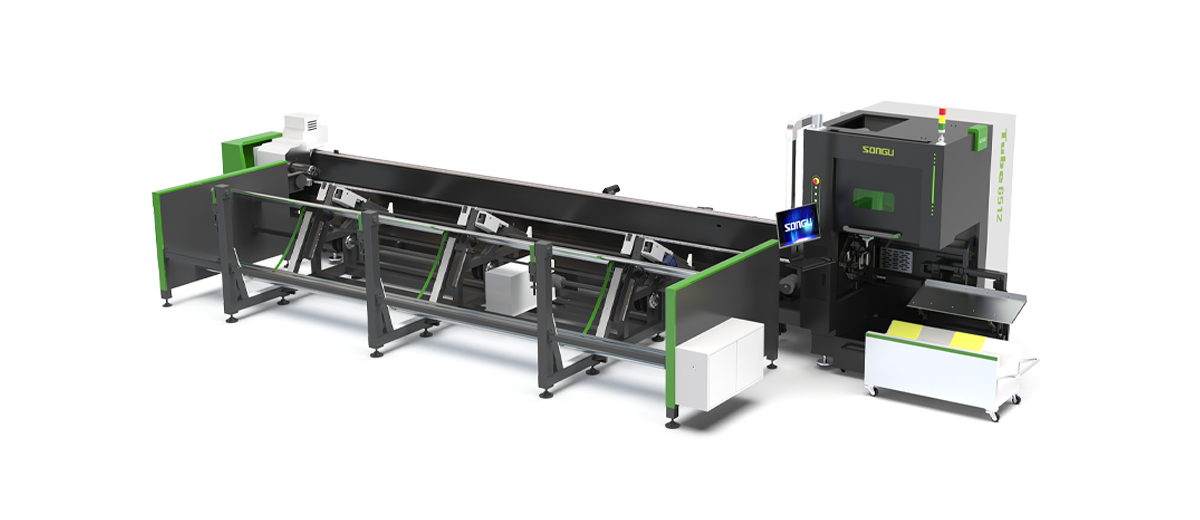

Tube fiber laser cutting machine with auto-loading system

Tube Series

Laser power(w): 1500~6000W

Songu Laser Technology’s Tube series 2-chuck loading tube laser cutter, the machine tool adopts a large gantry machining center for precision machining: through a large-scale gas-heated combined car heat treatment furnace, equipped with pneumatic self-centering chuck, the equipment has a power failure memory function, professional nesting software and laser cutting system are highly integrated, with unique functions and cutting effects. Application: carbon steel pipe laser cutting, stainless steel pipe laser cutting.

Advantages

Integrating numerous functions to create more value for customers.

Gantry beam structure, high dynamic performance, high rigidity, high cutting accuracy, good stability, air walking speed of 100m / min, processing acceleration of 1.2G;
Automatic lubrication system, timing automatic oil supply, the slider of the machine tool and transmission gear quantitative thin oil lubrication, ffectively improve the running state of transmission parts, reduce maintenance, extend the service life of equipment;
Modular design, optional different loading and unloading methods, according to the actual production needs and workshop layout, free combination display; blow and suction, pipe interior and cutting area with negative pressure suction dust removal, fast and thorough dust removal, clean production;
Optional semi-automatic feeding system, can be arranged on the feeder in advance, in the cutting; optional automatic feeding system, can be the whole bundle of feeding, put in, the equipment automatically sorting feeding, the whole process without manual intervention;6、Standard pneumatic gradient concave wheel auxiliary support, to avoid the weight of processed materials, reduce pipe deformation, improve the cutting accuracy.

Parameters

Optimize innovation to make products faster, more stable, and more reassuring

Model	TUBE6512B	TUBE6524B	TUBE7524B
Working area	ø10≤round tube≤ø80 □10≤square tube≤□80	ø20≤round tube≤ø160 □20≤square tube≤□150	ø10≤round tube≤ø80 □10≤square tube≤□80
Laser power	3000 ~ 6000W	3000 ~ 6000W	3000 ~ 6000W
Max. workpiece weight	Semi-automatic 120kg Manual 50kg Full automatic	100kg Semi-automatic 240kgManual NA Full automatic	Semi-automatic 120kg Manual 50kg Full automatic
Material length	4000-6000mm	4000-6000mm	4000-7500mm
Tail material length	70mm Interference-avoidance/ advance into front chuck for cutting	65mm/100mm/120mm/0mm	70mm Interference-avoidance/ advance into front chuck for cutting
Movement speed of each axis	X/Y：100m/min B：130RPM	X/Y：70m/min B：70RPM	X/Y：100m/min B：130RPM
Overall dimension	9180×1710 ×2550mm	9450×1945 ×2390mm	10380×1710 ×2550mm
Weight	3200kg	4500kg	4500kg

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

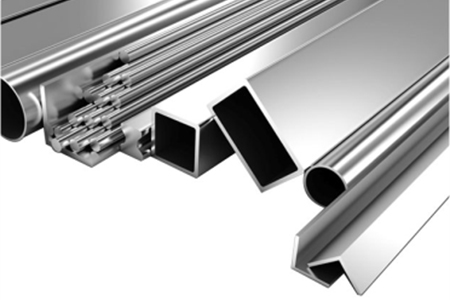

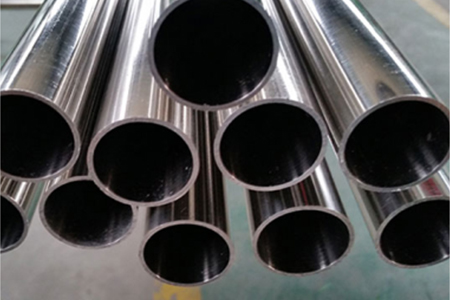

Apply to various pipes such as carbon steel, aluminum alloy, titanium alloy, galvanized, galvanized aluminium, brass, copper and other pipe cutting.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
