<title>Ultra Large Format Laser Cutting Machine

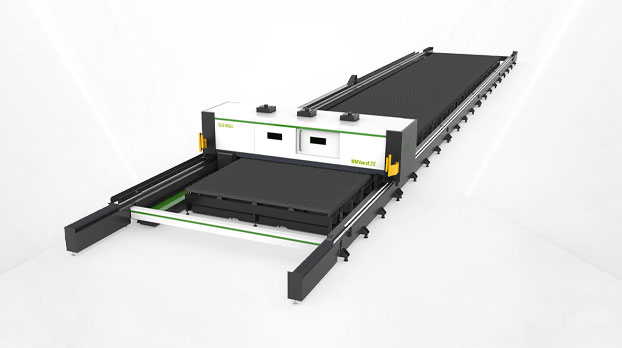

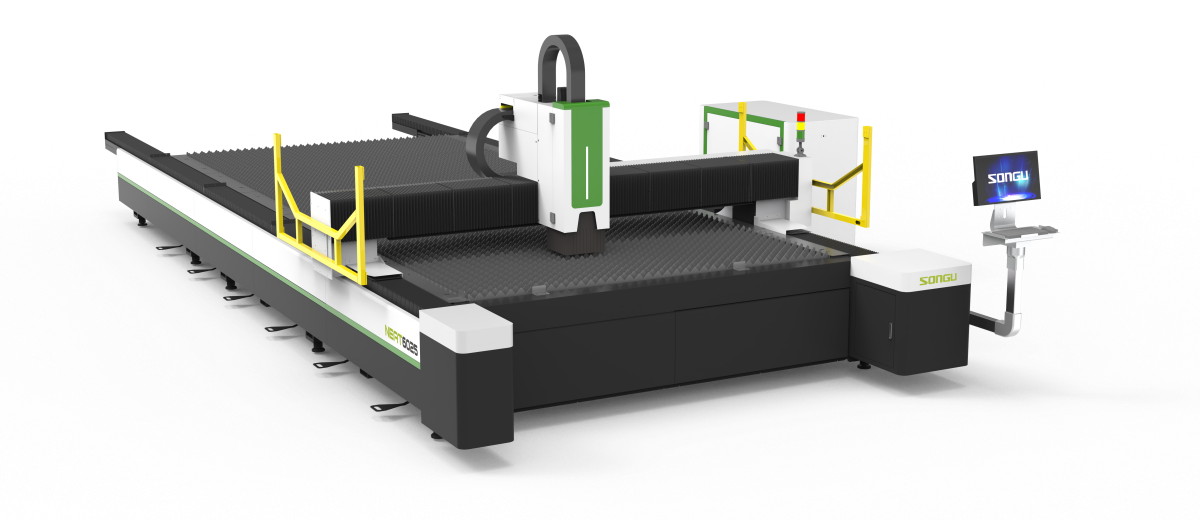

Ultra Large Format Laser Cutting Machine

NEAT6025F

Laser power: 3000 ~ 12000W

Support advanced functions of find workpiece edge, auto focus control, dual shuttle, break point locate, QR code generation, remnant split, round tube cutting etc; The equipment enjoy power failure memory; retreat cutting; automatic fault alarm and emergency stop; fault info auto-display, light curtain is available for safe operation; Auto-focus head, Flexible piercing technique, support auto change focal position in piercing, suitable for thick metal plate processing;

Features

Integrated multi-functions into one, create more value for customer

Support advanced functions of find workpiece edge, auto focus control, dual shuttle, break point locate, QR code generation, remnant split, round tube cutting etc;
The equipment enjoy power failure memory; retreat cutting; automatic fault alarm and emergency stop; fault info auto-display, light curtain is available for safe operation;
Auto-focus head, Flexible piercing technique, support auto change focal position in piercing, suitable for thick metal plate processing;
Proportional servo valve helps to auto-switch the 3 assist gas to achieve good cutting quality;
Modular design structure.According to customer needs,24~96 working area is optional;
Finite element analysis of gantry help to achieve the best critical state of dynamic performance;

Parameters

Optimize innovation to make products faster, more stable, and more reassuring

Model number	NEAT6025F
Overall dimension	9910×3980×2080mm
Working area	6500×2500mm
Laser power	3000 ~ 12000W
Max coordinated speed	100m/min
Maximum accelerated speed	0.8G
Positioning accuracy	0.05mm/m
Repeat positioning	±0.03mm
Allowable material weight	4700kg
Weight	7500kg

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

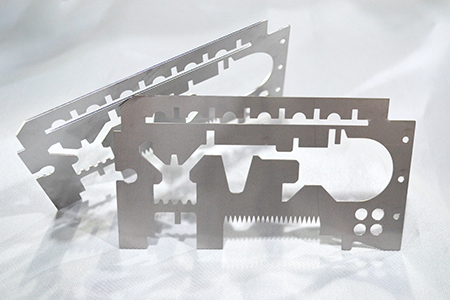

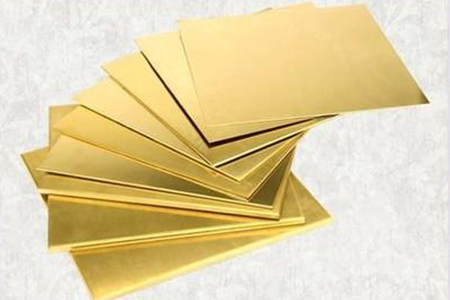

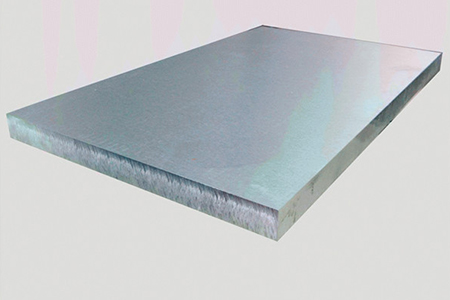

Metal materials such as Carbon steel, Stainless steel, Aluminum alloy, Titanium alloy, Galvanize sheet, Brass, Red copper etc

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
