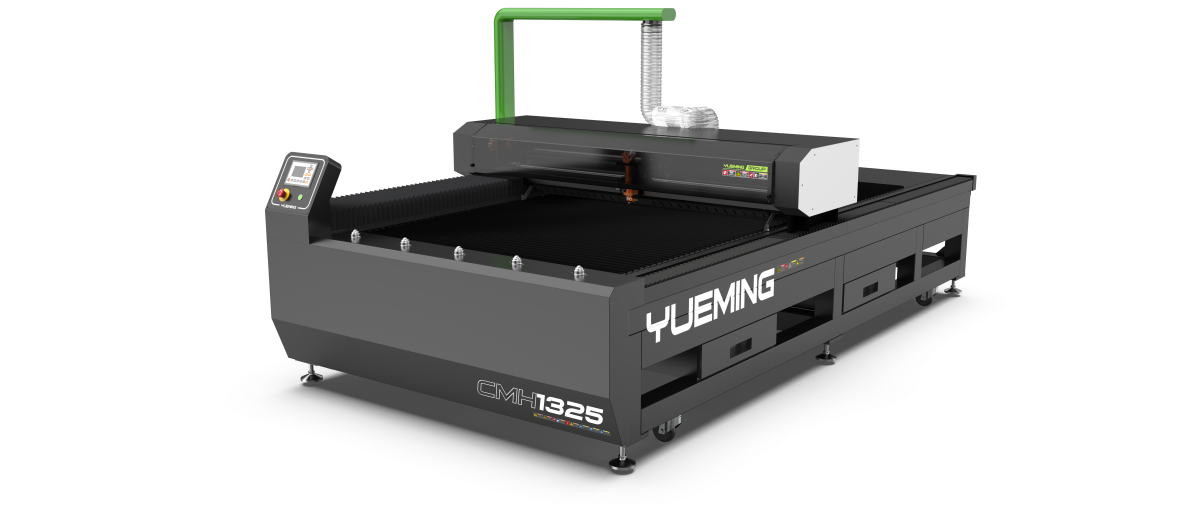

Plate CO2 Precision Laser Cutting Bed Series

CMH1325C-G-B

Laser power(w):100-300W

Equipped with advanced air extraction and synchronous follow-up blowingfunctions, the cutting smoke can be extracted in time, reducing the smokeconcentration and reducing the probability of fire;

Features

Integrated multi-functions into one, create more value for customer

Exclusively developed intelligent visual technology, it only takes 3 stepsfrom drawing to processing,making the operation more efficient andconvenient;
Equipped with advanced air extraction and synchronous follow-up blowingfunctions, the cutting smoke can be extracted in time, reducing the smokeconcentration and reducing the probability of fire;High-precision screw + servo motor transmission system;
Constant light path compensation technology improves the consistency ofthe beam in the entire working area and ensures cutting quality;
Optional laser tubes with different powers from 130W~600W can meetflexible response to various materials and processing needs;Portable focusing lens design makes it easier to replace and clean lensessaving time and effort;

Parameters

Optimization and innovation, make product faster, more stable and more assured.

Model	CMH1325C-G-B
Working area	1200×2500mm
Overall dimension	3700× 2050 × 1150mm
Laser power	130-300W
Feeding speed	24m/ min
Transmission structure	Screw driving system
Repeated Positioning accuracy	±0 .08mm /m
Gross power	3.8kW
Weight	680kg
Supply voltage	AC 220-240V 50/60Hz
Working environment	Temp:5~40°C Humidity:5~80% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

Non-metal material such as wood, plywood, MDF, and acrylic sheet etc.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
