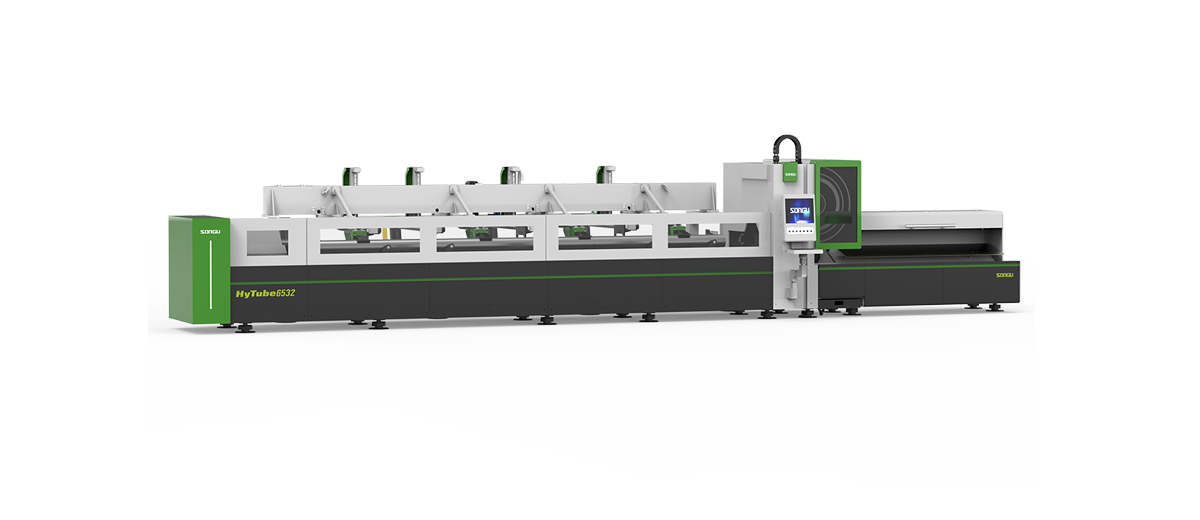

HyTube Series 2-Chuck Tube Laser Cutter

HyTube Series

Laser power(w): 3000~6000W

Yueming Laser's HyTube series dual-chuck fiber laser tube cutting machine features fully automatic bundled feeding (optional), reducing operator workload while increasing processing efficiency. It includes an automatic tube cross-section recognition system, allowing for mixed feeding of various tube types and automatic retrieval of the process library. Equipped with professional tube cutting programming software and a complete library of cutting process parameters, it is primarily used for laser cutting of carbon steel tubes, stainless steel tubes, etc.

Advantages

Integrating numerous functions to create more value for customers.

Stable and accurate
High dynamic laser head, stable and accurate;
High precision
High precision servo proportional valve, precise control of cutting auxiliary gas pressure and chunk clamping force to achieve the best cutting effect;
Fully automatic
Full automatic loading function, high efficiency (optional);
Identification system
Automatic cross section identification system (optional), automatically match the tube types and processing data;
Easy to operate
Professional tube cutting software helps to save material and ensure efficiency cutting;
Professional software
FRIENDESS FSCUT5000B numerical control system based on Windows system,special platform of laser tube cutter,integrated with special function module of laser cutting control, powerful.

Parameters

Optimize innovation to make products faster, more stable, and more reassuring

Model	Tube7530A	Tube7536A
Working area	ø20≤round tube≤ø300 □20≤square tube≤□300	ø20≤round tube≤ø360 □20≤square tube≤□360
Max. workpiece weight	650kg Semi-automatic	600kg Semi-automatic
Material length	4000-7500mm	4000-7500mm
Tail material length	270mm(Straight cut, through cut)/Straight cut 500mm/ Outer bevel 750mm(Bevel cut, through cut)	420mm(Straight cut, through cut)/Straight cut 550mm/ Outer bevel 770mm(Bevel cut, through cut)
Movement speed of each axis	X/Y：50m/min B：50RPM	X/Y：40m/min B：30RPM
Positioning accuracy	±0.05mm/m	±0.05mm/m
Acceleration of each axis of motion	Y：0.4G B：50rad/s2	Y：0.4G B：30rad/s2
Weight	10000kg	10150kg
Overall dimension	15970×2250 ×2610mm	15970×2250 ×3150mm

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

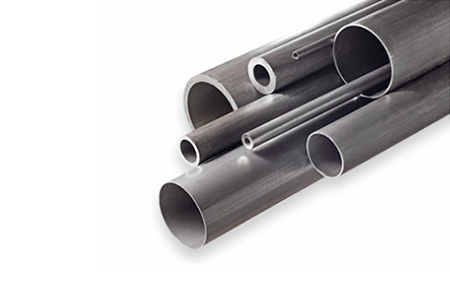

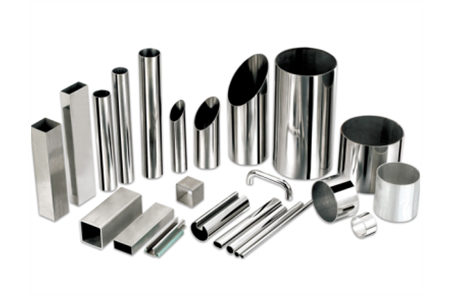

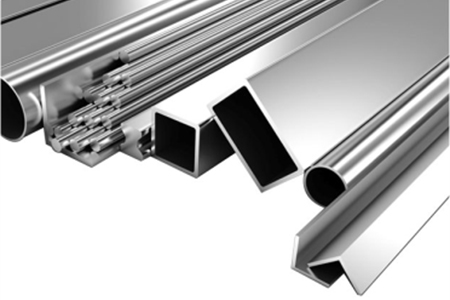

Apply to various pipes such as carbon steel, aluminum alloy, titanium alloy, galvanized, galvanized aluminium, brass, copper and other pipe cutting.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
