<title>MACH SERIES FIBER LASER CUTTER

CO2 High Precision Laser Cutting Machine Series

PCO506-A/PC1008-A

Laser power: 3000-30000W
Automatic lifting exchange workbench, high synchronous integrated lifting and feeding design, with few fault points and high stability. The key components adopt all German accessories, with high-end configuration, good stability, and durability...

Features

Intergrated multi-functions into one, create more value for customer

Auto-exchange table
Hydraulic lifting platform, stable and efficient cutting;
German quality components
The key components are all German accessories, high-end configuration, good stability and durability;
High-precision drive system
Driven by high-precision servo motor, equipped with high-precision transmission mechanism, high installation accuracy, large transmission torque, small transmission, and good dynamic characteristics;
Energy-saving device
Equipped with automatic energy-saving device,the machine will automatically enter the hibernation state when the equipment is suspended for more than 5min;
CCD eagle eye
Optional CCD eagle eye recognition technology, optical eye search edge, extremely fast. Supports secondary cutting functional, secondary processing is easy, and waste cutting can also be handled freely;
Self-developed technology
Developed variable frequency cutting zoom perforation technology ensures high-efficiency and high-quality processing of plates of different thicknesses and materials.

Specification

Optimization and innovation, make product faster, more stable, more assured

Model	CMH1309C-G-B	CMH1309C-GT-B
Laser power	130W/180W/300W	130W/180W/300W
Working area	1300× 900mm	1300× 900mm
Speed	15m/ min	15m/ min
Repeated positioning accuracy	±0 .1 mm /1000mm	±0 .1 mm /1000mm
Transmission system	Screw Single Drive + rail	Screw Single Drive + rail
Gross power speed	2.2kW	3kW
Overall dimension	2105× 1800 × 1180mm	2105× 1800 × 1180mm
Weight	600kg	650kg
Supply voltage	AC220 ~ 240V 50/60Hz	AC220 ~ 240V 50/60Hz
Working environment	Temp:0~40° CHumidity: ≤ 80% Clean	Temp:0~40° CHumidity: ≤ 80% Clean

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dazu Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

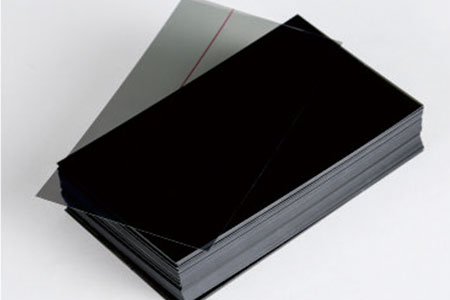

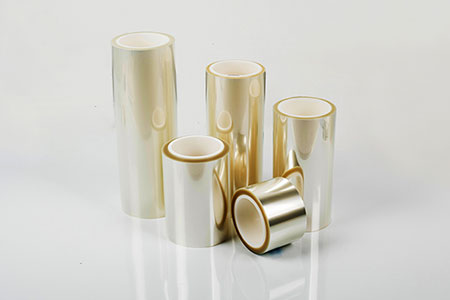

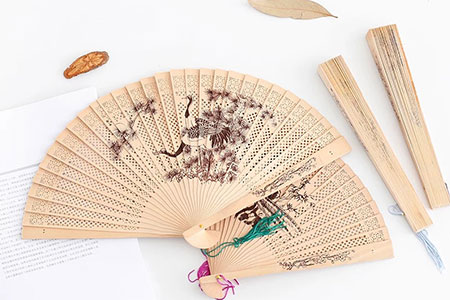

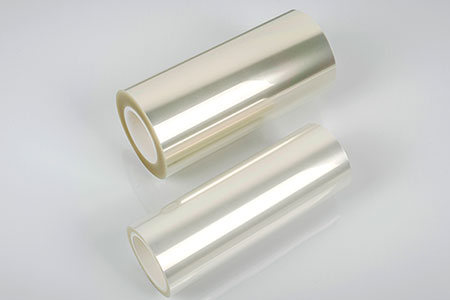

Suitable for fast cutting of non-metallic materials such as acrylic , wood , cardboard , density board , leather , and etc .

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
