4-Chuck Tube Laser Cutter

HyTube Series

Laser power(w): 3000~12000W

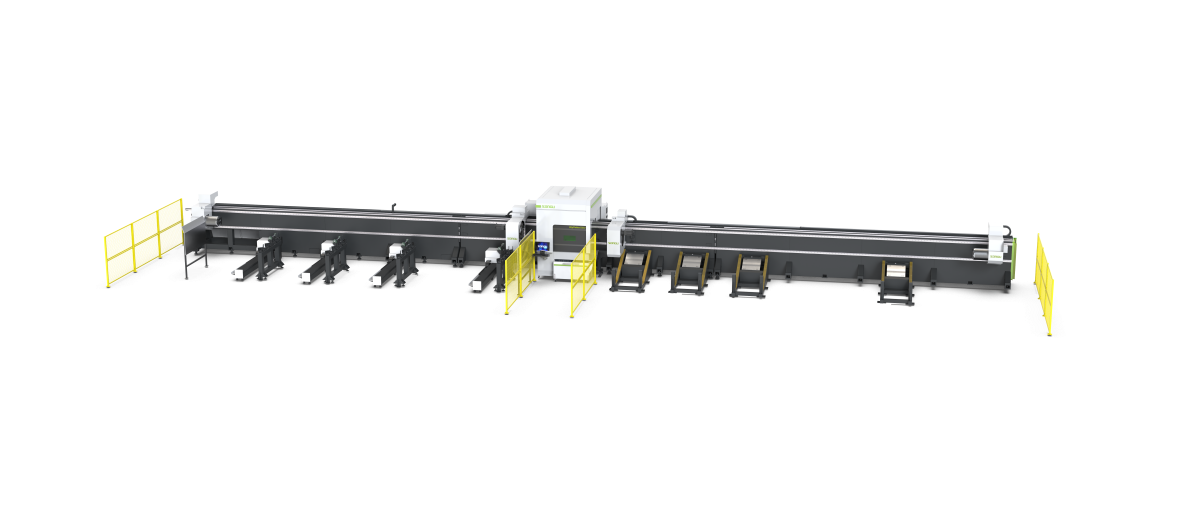

Songu Laser Automation’s HyTube Series 4-Chuck Tube Laser Cutter automatic tightening of the pneumatic self-centering chuck, equipped with professional pipe cutting software and built-in intelligent nesting and layout software, optional automatic loading and unloading device, 4-chuck structure design. Suitable for pipe cutting, body-in-white cutting.

Advantages

Integrating numerous functions to create more value for customers.

Cutting the cost
Automatic tightening of the pneumatic self-centering chuck, the clamping process does not require manual intervention, can achieve zero tailing processing, and avoid pipe waste;
Compact and reasonable
Optional automatic loading and unloading device, the overall layout is compact and reasonable, the floor space is small, saving production land, reducing labor, and improving production efficiency;
Professional software
Equipped with professional pipe cutting software and built-in intelligent nesting and layout software,high-efficiency cutting and bevel cutting;
Digital production
Independent R&D of core numerical control system, support EtherCAT digital bus communication;
4-chuck structure design
4-chuck structure design, the four chucks can move freely, reasonably share the weight of the loaded pipe, stabilize the support, prevent the pipe form swinging, and ensure accurate cutting and safe cutting;
Modular design
Z-axis drive adopts modular dive unit, double slider design, good rigidity, light preload, effectively reduces the vibration of the cutting head during high-speed motion, and improves the accuracy of interpolation trajectory.

Parameters

Optimize innovation to make products faster, more stable, and more reassuring

Model	HyTube12036	HyTube12050
Working area	ø20≤Round tube≤ø360 □20≤Square tube≤□360 Channel steel≤32# I-beam steel≤32#	ø30≤Round tube≤ø500 □30≤Square tube≤□360 Channel steel≤40# I-beam steel≤40#
Max. workpiece weight	1000kg	1500kg
Laser power	3000~12000W	3000~12000W
Material length	6000 ~ 12000mm	6000 ~ 12000mm
Tail material length	0mm Third chuck clamping 1200mm Dual-chuck clamping 1500mm	0mm Third chuck clamping 1200mm Dual-chuck clamping 1501mm Outer bevel
Movement speed of each axis	X/Y：40m/min B：30RPM	X/Y：18m/min B：10RPM
Acceleration of each axis of motion	Y：0.2G B：10rad/s2	Y：0.2G B：10rad/s2
Weight	31500kg	32000kg
Overall dimension	30280×4840 ×3355mm	30280×4840 ×3355mm

→ Machine information and data

*The appearance, parameters, performance description, data, etc. of the products displayed on this page are all from the testing and experimentation of our company's own products in the internal laboratory of Dan's Yueming Laser Factory. They are for reference only, and the actual product shall prevail.

Application

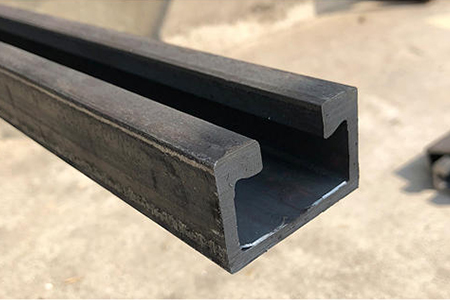

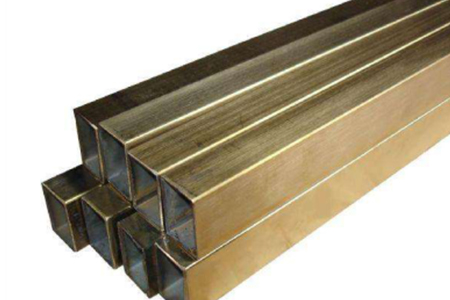

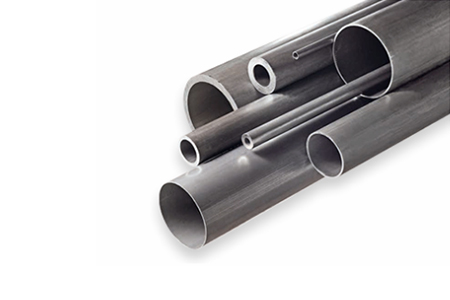

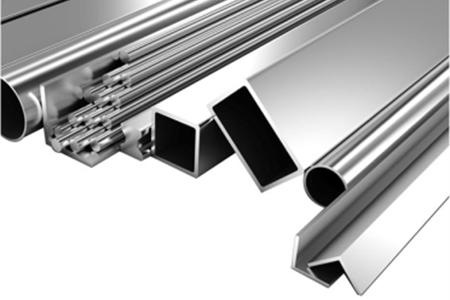

Apply to various pipes such as carbon steel, aluminum alloy, titanium alloy, galvanized, galvanized aluminium, brass, copper and other pipe cutting.

Product Video

Every detail strives for perfection, with humanized operation desks, all-round design, and stainless steel edging, to create industrial products with luxury requirements to meet your needs for product appearance and taste.
